D07 GR TYPE A REPLACEMENT — PLAN SHEET - LOCATION 7

MOT-48-10.260 & MOT-48-10.304 & MOT-48-10.331 | SR 48 - FAR HILLS AVE

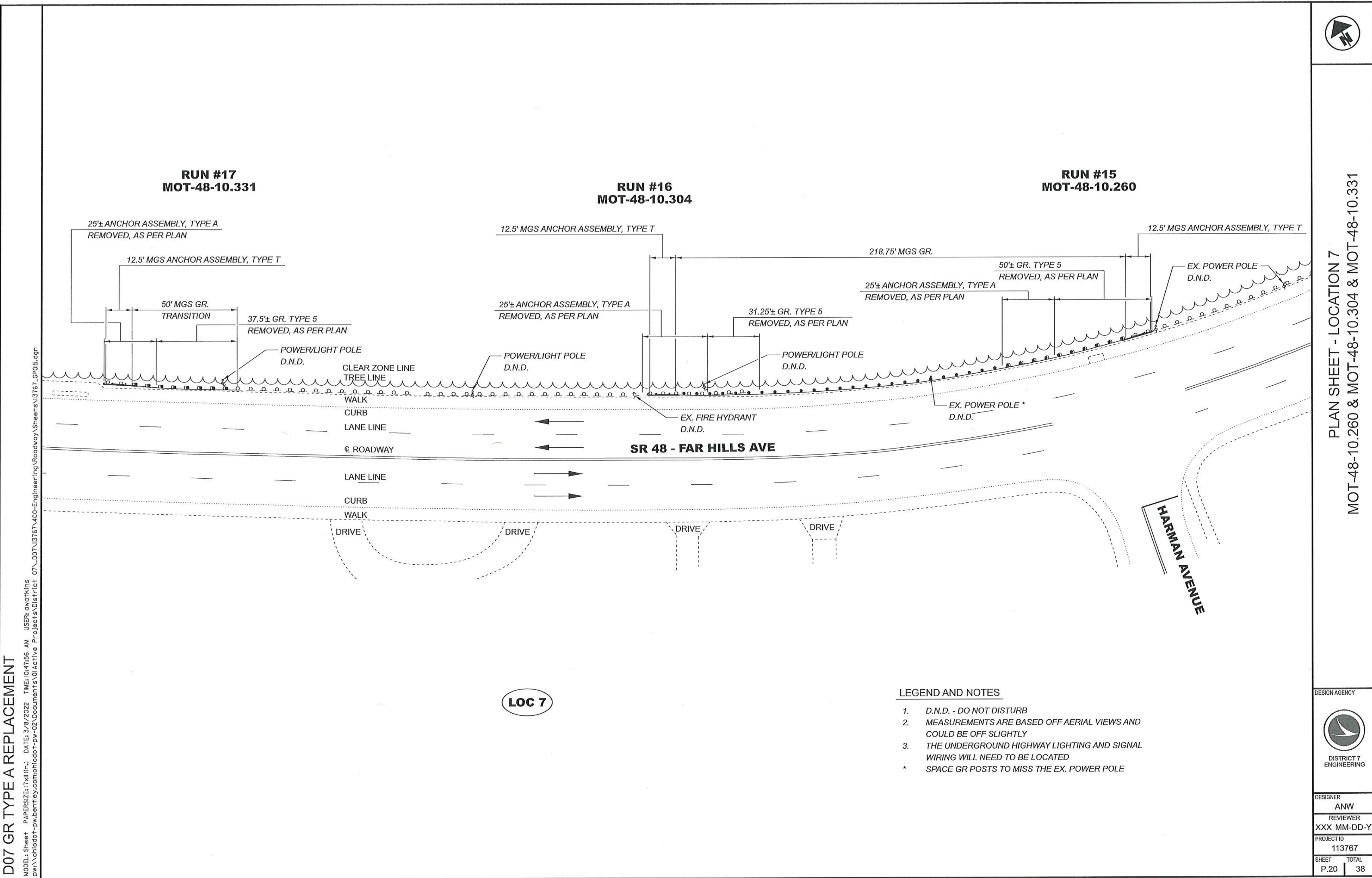

Engineering Plan Sheet - Location 7 showing guardrail runs #15, #16, and #17 along SR 48 - Far Hills Ave, including anchor assemblies, power poles, fire hydrant, Harman Avenue intersection, legend, and title block.

Guardrail Runs Summary

  • RUN #17 (MOT-48-10.331): 25'± Anchor Assembly Type A (Removed), 12.5' MGS Anchor Assembly Type T, 50' MGS GR Transition, 37.5'± GR Type 5 (Removed).
  • RUN #16 (MOT-48-10.304): 25'± Anchor Assembly Type A (Removed), 12.5' MGS Anchor Assembly Type T, 31.25'± GR Type 5 (Removed), 218.75' MGS GR.
  • RUN #15 (MOT-48-10.260): 25'± Anchor Assembly Type A (Removed), 50'± GR Type 5 (Removed), 12.5' MGS Anchor Assembly Type T.

Legend & Notes

  1. D.N.D. - DO NOT DISTURB
  2. MEASUREMENTS ARE BASED OFF AERIAL VIEWS AND COULD BE OFF SLIGHTLY
  3. THE UNDERGROUND HIGHWAY LIGHTING AND SIGNAL WIRING WILL NEED TO BE LOCATED
  4. * SPACE GR POSTS TO MISS THE EX. POWER POLE

Project Metadata

Project ID 113767
Design Agency District 7 Engineering
Designer ANW
Reviewer XXX MM-DD-YY
Sheet No. P.20 of 38
