Product Decision Trees

The following product decision trees were created by Purdue University to identify the potential outcomes and safety of select HBV products.

Cream Pies

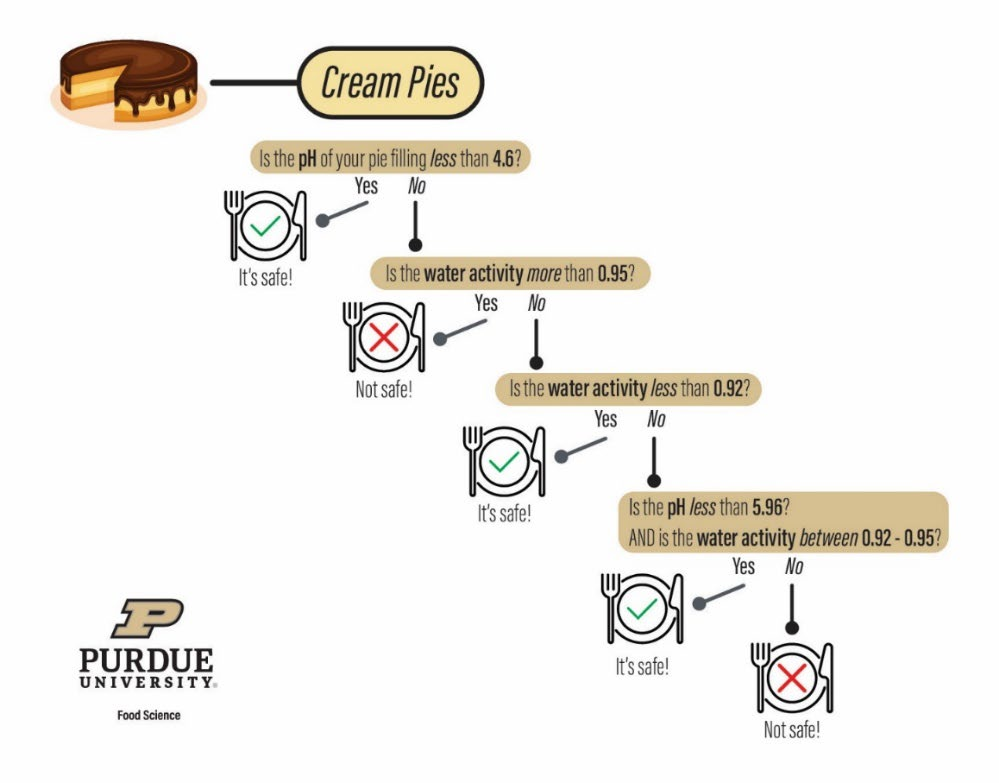

Cream Pies Decision Tree flowchart from Purdue University. Decision points: pH of pie filling less than 4.6 (Yes -> safe, No -> next check), water activity more than 0.95 (Yes -> not safe, No -> next check), water activity less than 0.92 (Yes -> safe, No -> next check), pH less than 5.96 AND water activity between 0.92 and 0.95 (Yes -> safe, No -> not safe).

Cheese Bread

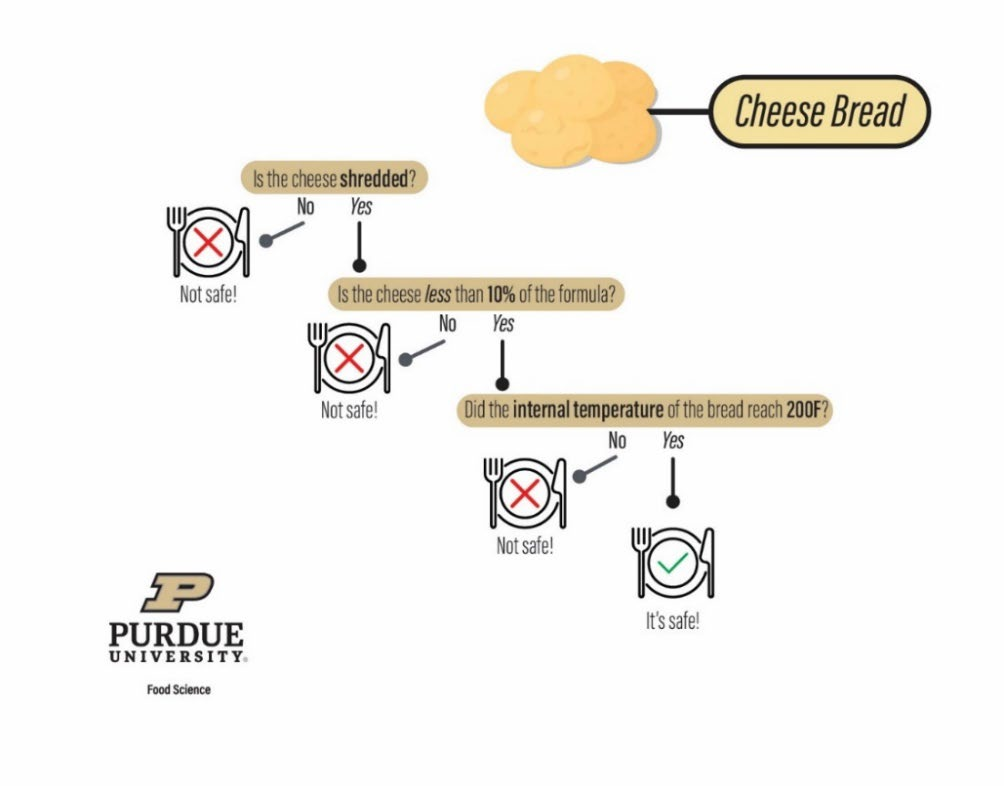

Cheese Bread Decision Tree flowchart from Purdue University. Decision points: cheese shredded (No -> not safe, Yes -> next check), cheese less than 10% of the formula (No -> not safe, Yes -> next check), internal temperature of the bread reached 200F (No -> not safe, Yes -> safe).
