John Doe residence- 22kW Gen

Sheet catalog

Index no.	Description
T-1	Site plan
E-1	Single line diagram
E-2	Gas line diagram
GE	Generator placement
SPEC	Specification sheet(s)

Scope of work

General system information:

System size: 22kW

Generator: (1) Generac G007043-2 22kW

All Construction shall comply with the following adopted Codes:

2019 California Building / Residential Code
2019 California Electrical Code
2019 California Plumbing Code
2019 California Mechanical Code
2019 California Energy Code
2019 California Green Building Standards

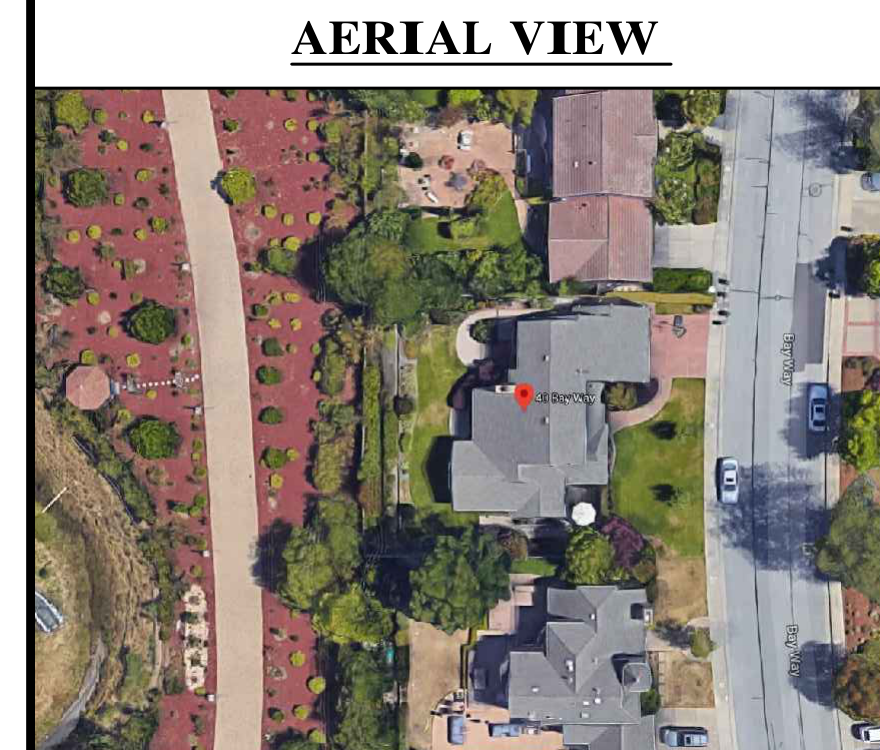

Aerial view

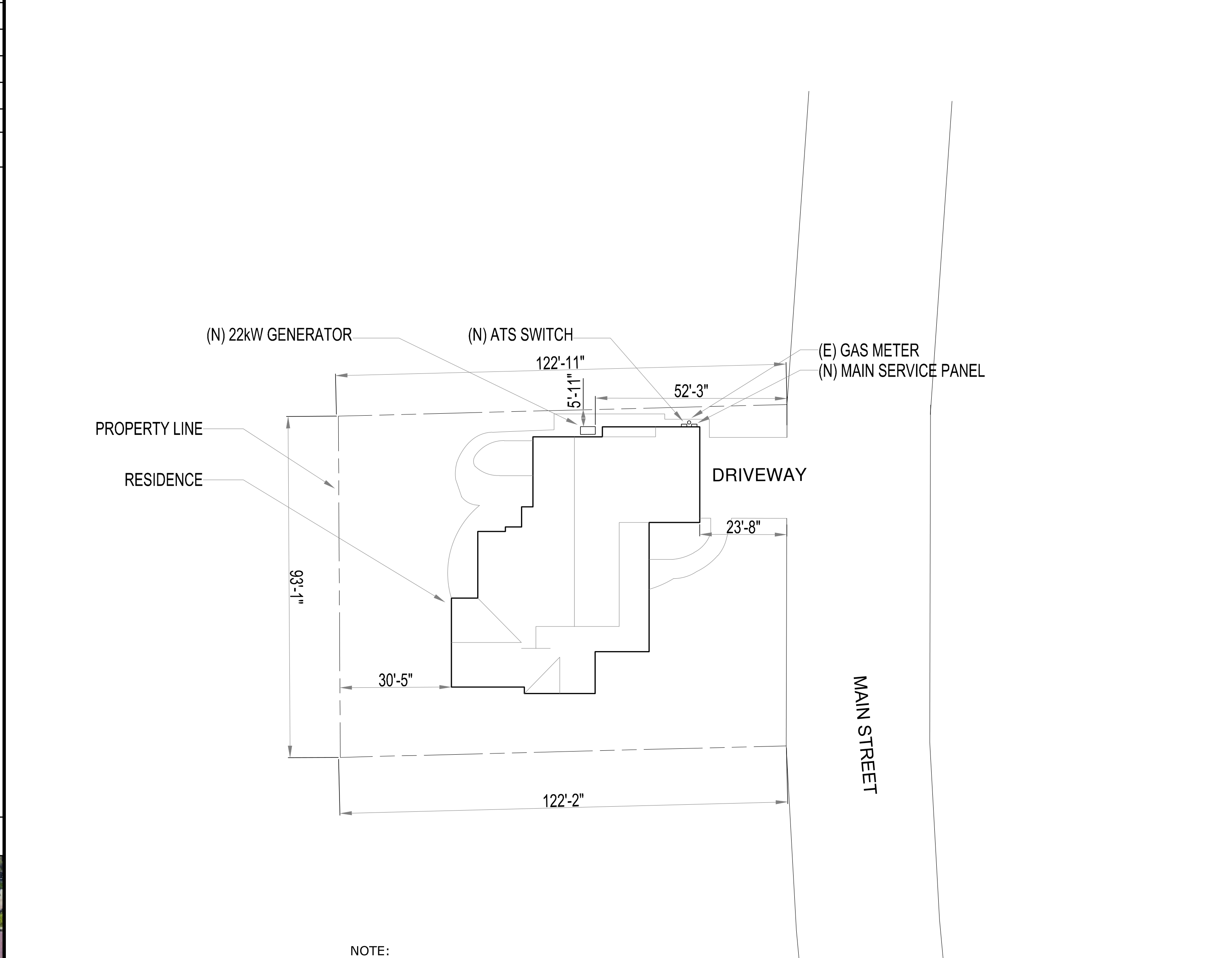

Site plan layout

Engineering drawing of the site plan showing the residence footprint, property lines, driveway, and locations for the generator, ATS switch, and gas meter.

Note:

Generator needs to be minimum 5 foot from all property lines and 15 feet from neighbor's windows.

Scale: 1"=32'-0"
