Spec sheet

Site plan layout

Field installation kits and parts

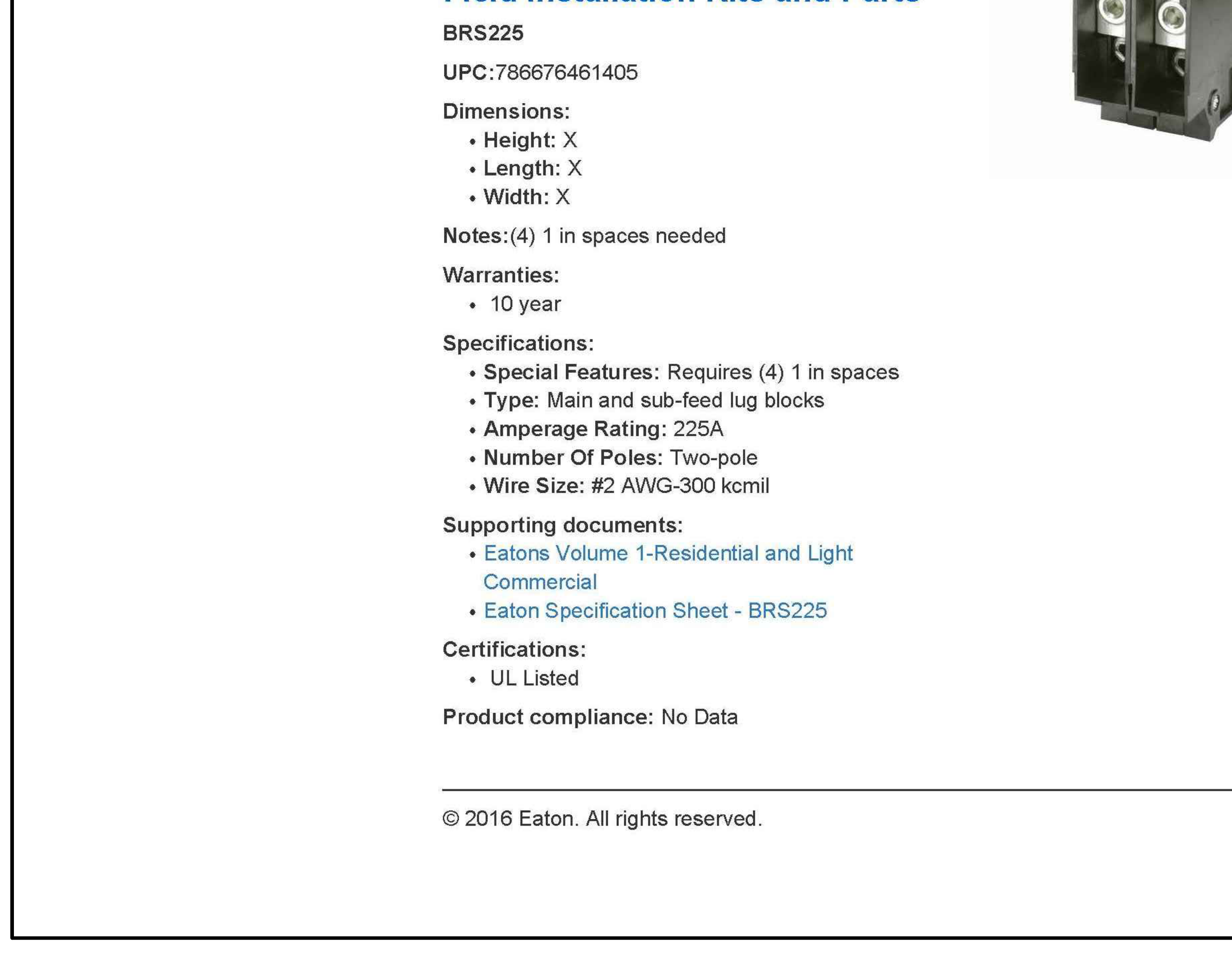

Product specification sheet for Eaton BRS225 Field Installation Kits and Parts. Includes product image of a two-pole lug block, dimensions, notes, and technical specifications.

Product website: pe.eaton.com

Model: BRS225

UPC: 786676461405

Dimensions

  • Height: X
  • Length: X
  • Width: X

Notes: (4) 1 in spaces needed

Warranties

  • 10 year

Specifications

  • Special Features: Requires (4) 1 in spaces
  • Type: Main and sub-feed lug blocks
  • Amperage Rating: 225A
  • Number Of Poles: Two-pole
  • Wire Size: #2 AWG-300 kcmil

Supporting documents

  • Eatons Volume 1-Residential and Light Commercial
  • Eaton Specification Sheet - BRS225

Certifications

  • UL Listed

Product compliance: No Data

© 2016 Eaton. All rights reserved.

Customer information

Details of the customer and site for this specification.
Field Information
Name John Doe
Address 100 Main Street, San Rafael, CA 94901
APN 000-000-00
AHJ CA- City San Rafael

Specification sheet

Project metadata and sheet identification.
Metadata field Details
Designer/Checked by None
Scale As noted
Date None
Sheet ID Spec
