Spec sheet

Site plan layout

Generac guardian series residential standby generators

Generac brochure top section: Guardian Series Residential Standby Generators, Air-Cooled Gas Engine, 16/20/22 kW. Details include product highlights, standby power ratings, and features/benefits for the engine, generator, and control systems.

The upper portion of the brochure highlights the Generac Guardian Series residential standby generators, focusing on the 16, 20, and 22 kW models. Key inclusions mentioned are True Power Electrical Technology, a multilingual LCD controller, various transfer switch options, and a 5-year limited warranty. Technical specifications for standby power ratings are listed for several models.

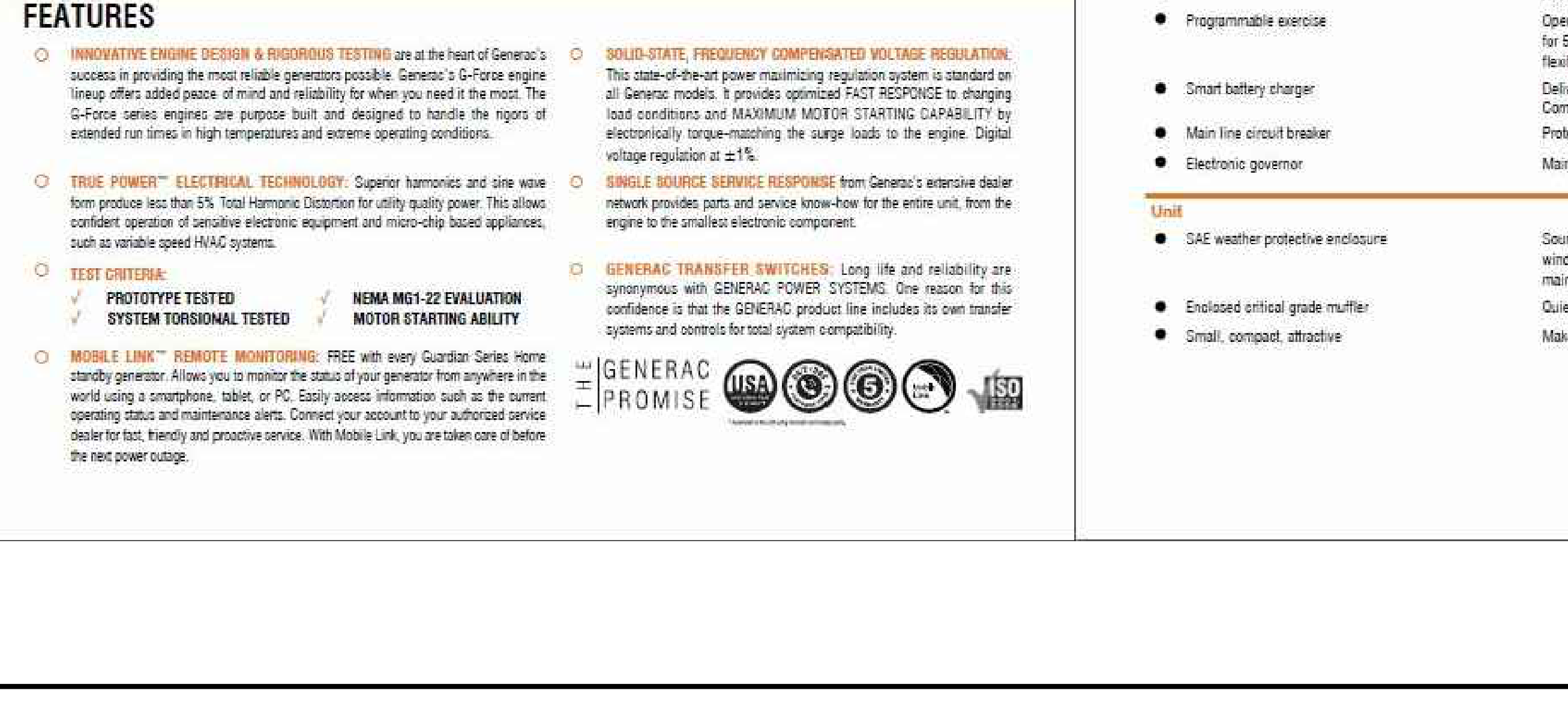

Generac brochure bottom section: Detailing features such as innovative engine design, testing criteria (Prototype and System Torsional tested), Mobile Link remote monitoring, and solid-state voltage regulation.

The lower portion of the brochure details specific features like engine design and testing criteria, including prototype and system torsional testing, and NEMA MG1-22 evaluation. It also highlights the Mobile Link remote monitoring system, which allows users to monitor generator status from a smartphone or tablet.

Review status

Reviewed for code compliance
Building inspection division
City of San Rafael

Customer information

Customer and site location details
Field	Information
Name	John Doe
Address	100 Main Street, San Rafael, CA 94901
APN	000-000-00
AHJ	CA- City San Rafael

Specification sheet details

Document metadata and project identification
Field	Information
Document type	Specification sheet
Designer / checked by	None
Scale	As noted
Date	None
Spec reference	Spec
