A103
INSTALLATION

A103.1 Boarding installation. The boarding installation shall be in accordance with Figures A103.1(1) and A103.1(2) and Sections A103.2 through A103.5.

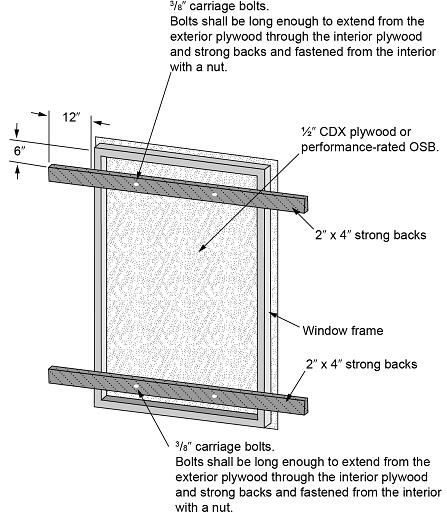

Figure A103.1(1) Boarding of door or window installation diagram showing carriage bolts, CDX plywood or OSB, strong backs, and window frame layout.

For SI: 1 inch = 25.4 mm.

FIGURE A103.1(1)
BOARDING OF DOOR OR WINDOW
