MOT-CR-609 SHROYER ROAD IMPROVEMENTS

PAVEMENT MARKINGS - STA. 100+13 TO STA. 108+31  |  Sheet 53 of 54 (02-124i)

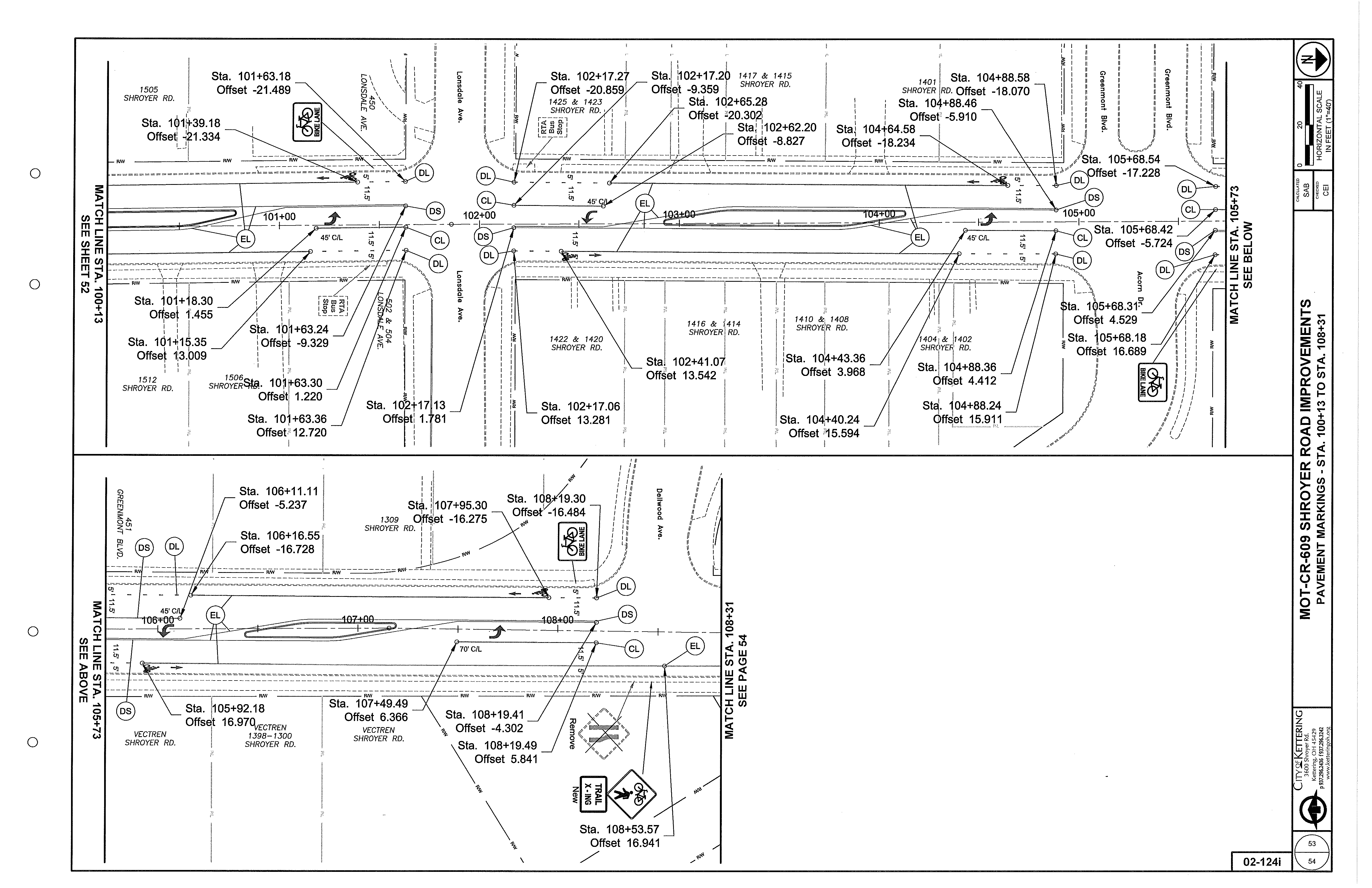

Plan View: Sta. 100+13 to Sta. 105+73

Pavement-marking engineering plan drawing for Sta. 100+13 to Sta. 105+73, including roadway lines, station callouts, dimensions, symbols, and labels.
Detailed source drawing. Scroll horizontally on narrow screens; activate the drawing to open a larger view.

Plan View: Sta. 105+73 to Sta. 108+31

Pavement-marking engineering plan drawing for Sta. 105+73 to Sta. 108+31, including roadway lines, station callouts, dimensions, symbols, and labels.
Detailed source drawing. Scroll horizontally on narrow screens; activate the drawing to open a larger view.
