MOT-CR-609 SHROYER ROAD IMPROVEMENTS

PAVEMENT MARKINGS - STA. 108+31 TO STA. 112+25

City: City of Kettering Scale: Horizontal 1" = 40' Sheet: 54 of 54 Project ID: 02-124i

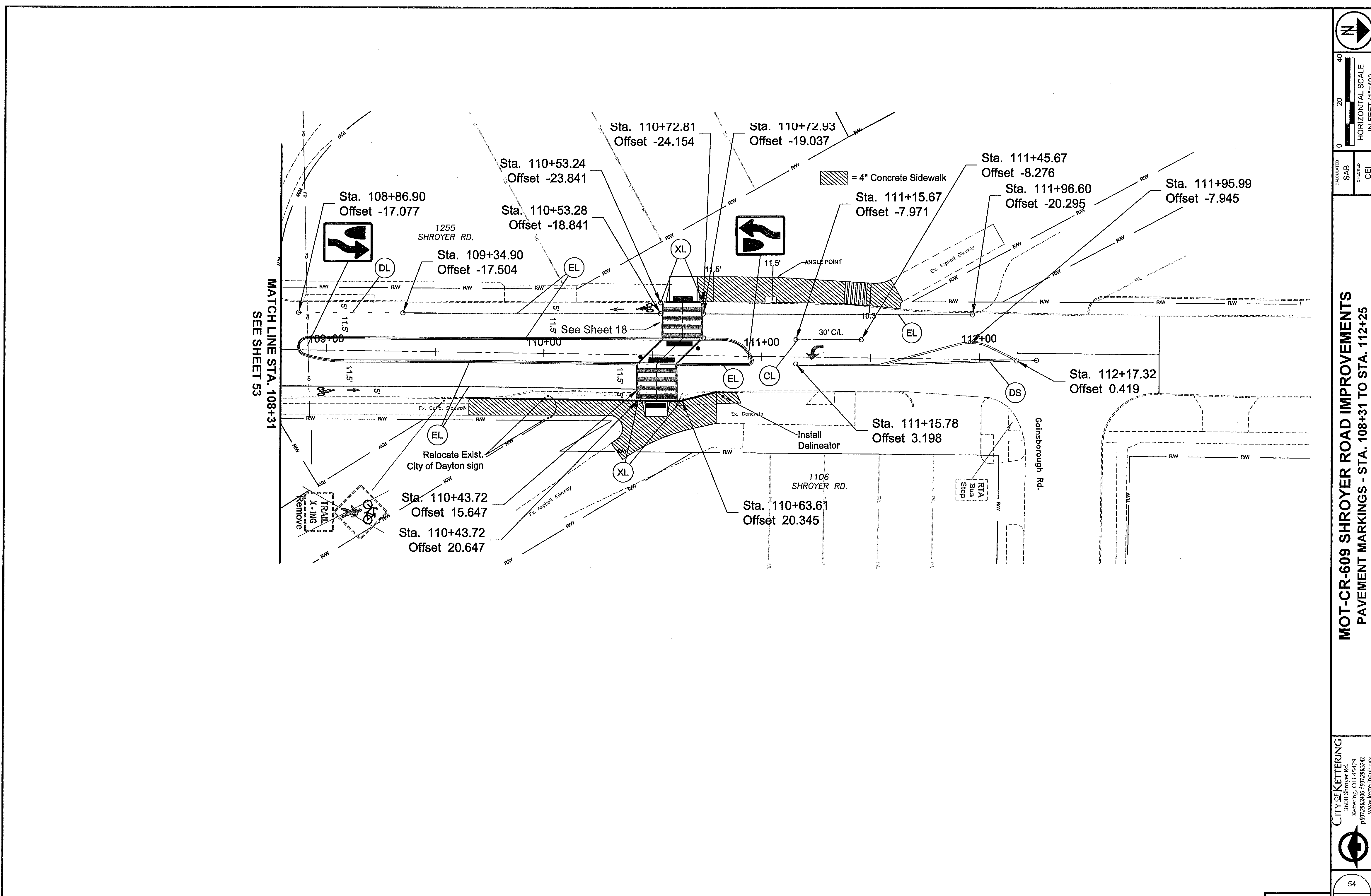

MOT-CR-609 Shroyer Road Improvements Engineering Drawing showing pavement markings, station offsets from Sta. 108+31 to Sta. 112+25, sidewalk details, and title block.
