MOT-CR-609 SHROYER ROAD IMPROVEMENTS

PEDESTRIAN CROSSINGS

Scale:1" = 10'
Sheet:18 of 54
Drawing No:02-124i

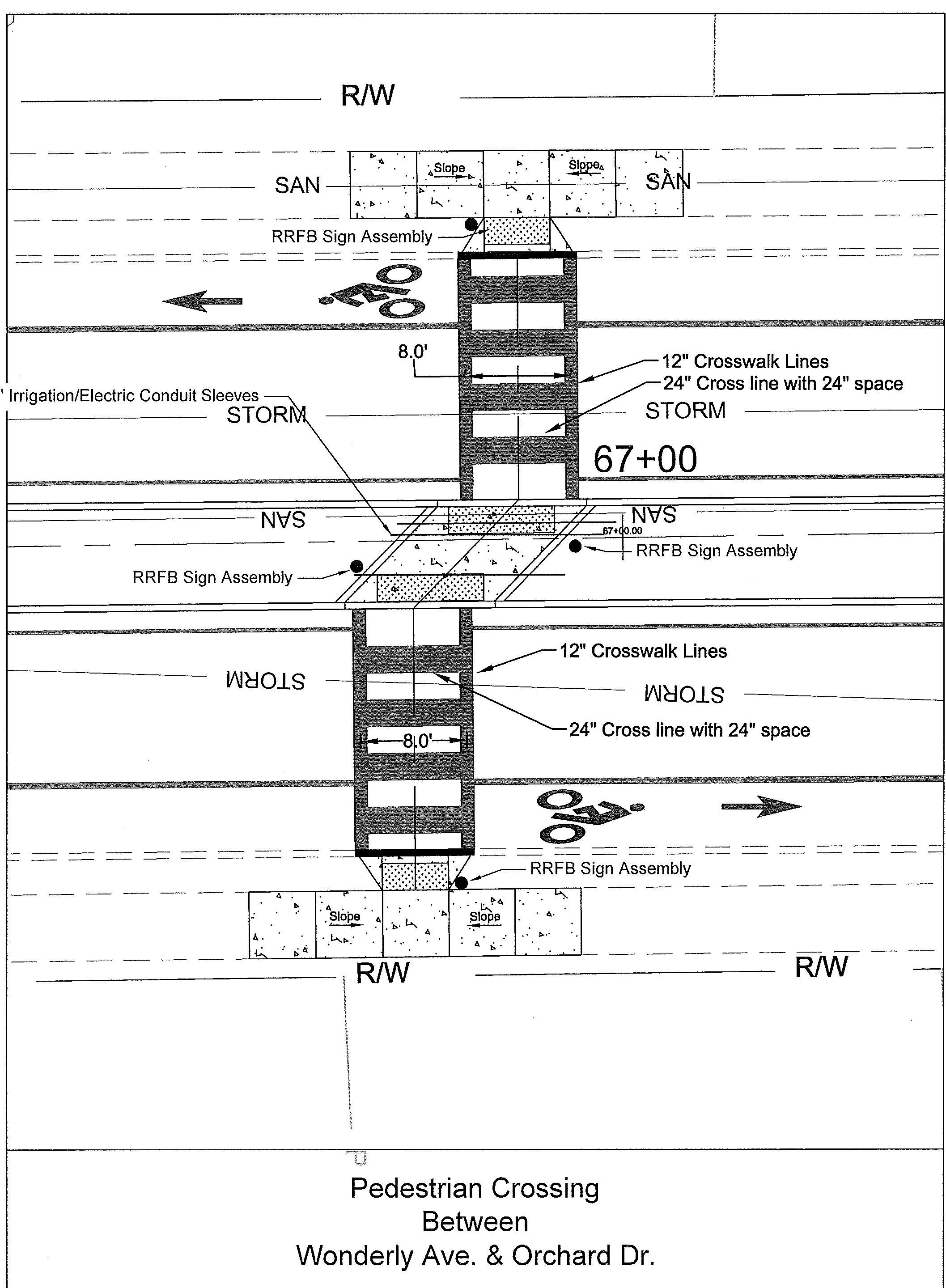

Pedestrian Crossing Between Wonderly Ave. & Orchard Dr.

Engineering plan view for Pedestrian Crossing Between Wonderly Ave. and Orchard Dr. showing RRFB Sign Assembly, crosswalk markings, conduit sleeves, storm lines, and right-of-way limits.

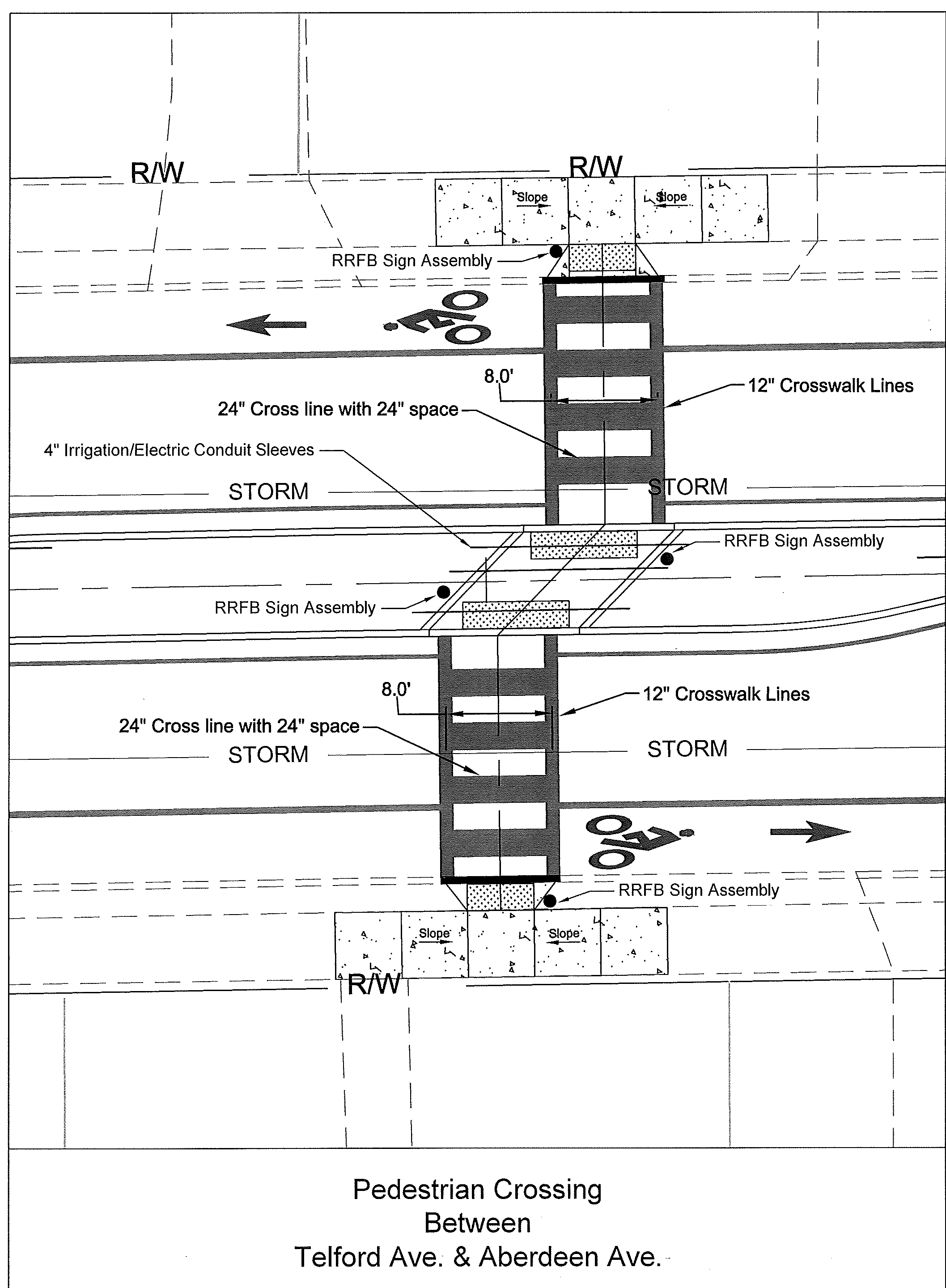

Pedestrian Crossing Between Telford Ave. & Aberdeen Ave.

Engineering plan view for Pedestrian Crossing Between Telford Ave. and Aberdeen Ave. showing RRFB Sign Assembly, crosswalk markings, conduit sleeves, storm lines, and right-of-way limits.

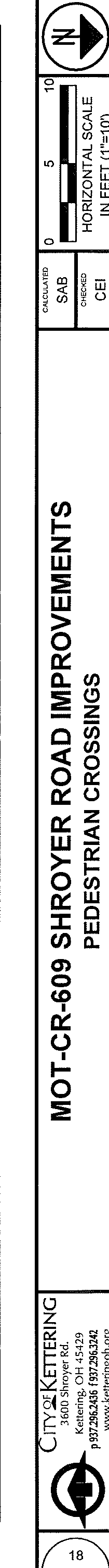

Title block sidebar displaying scale indicator, North arrow, City of Kettering details, and sheet identification.

Project Specifications & Details

MunicipalityCity of Kettering (3600 Shroyer Rd)
Signage & SafetyRRFB (Rectangular Rapid Flashing Beacon) Assemblies
Pavement Markings12" Crosswalk Lines & 24" Cross Lines with 24" Spacing
Utilities4" Irrigation/Electric Conduit Sleeves, Storm & Sanitary Lines
