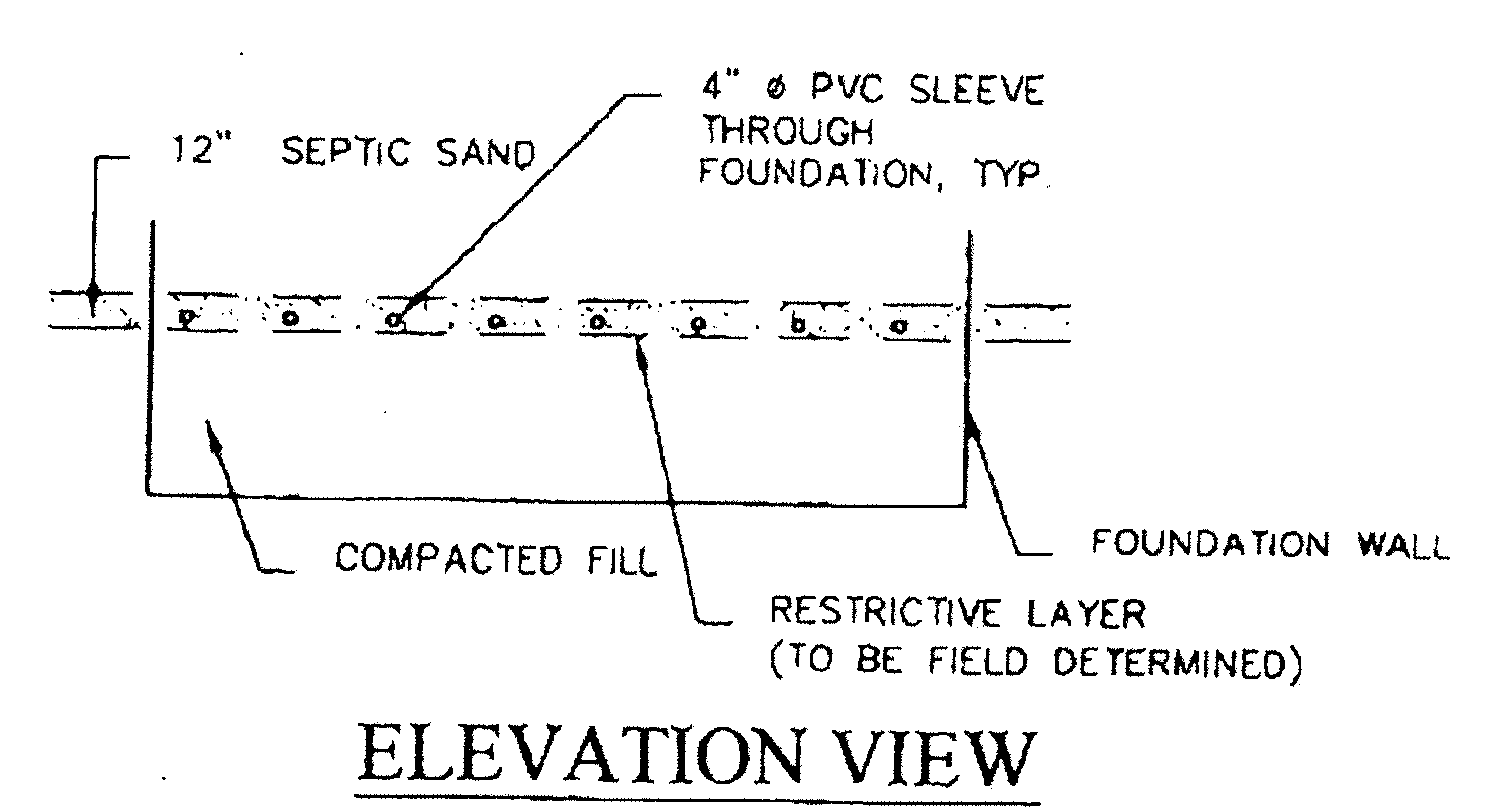

Elevation View showing foundation wall cross-section with compacted fill, restrictive layer, 12 inch septic sand layer, and series of 4 inch diameter PVC sleeves passing through the foundation.

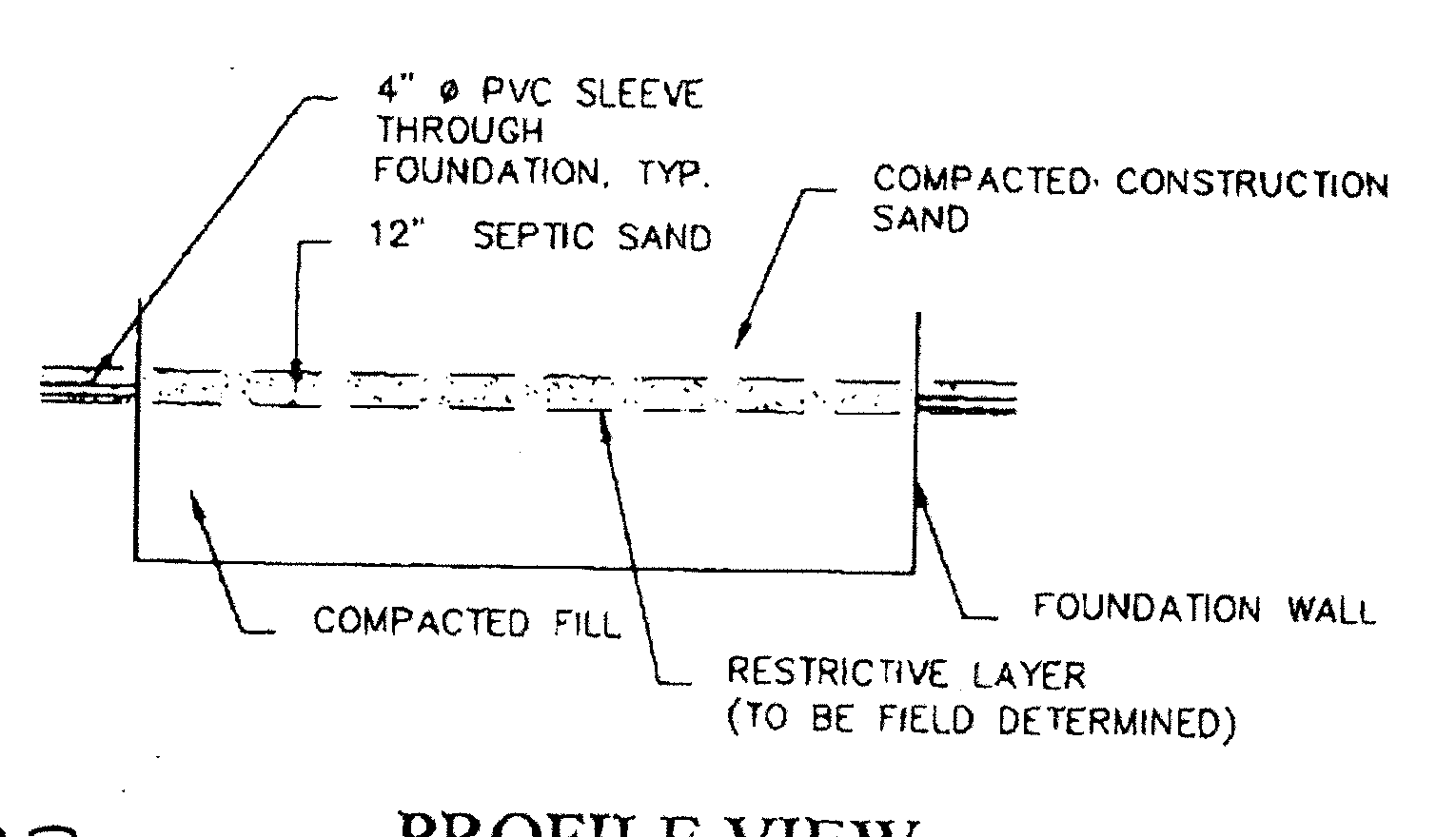

Profile View showing 4 inch diameter PVC sleeve through foundation, 12 inch septic sand, compacted construction sand, compacted fill, restrictive layer to be field determined, and foundation wall.
PROFILE VIEW
5-7-12
Handwritten annotation reading: Flow Thru Foundation, 156 Sandy Beach Rd, Goshen

Flow Thru Foundation
156 Sandy Beach Rd
Goshen

Colby Engineering And Consulting, LLC
4 Wynwood Court
Goshen, Connecticut 06756
PROPOSED GARAGE FOUNDATION DETAIL
FRANK E. & ARLENE J. McCARTHY
156 SANDY BEACH ROAD
GOSHEN, CT
Date: 5-7-2012
Job #: 12-017
Scale: 1" = 5' (Unless shown otherwise)
Sheet: 1 OF 1
Transmitted via Colby Excavating LLC • 06/05/2012 • Page 01
Accessible view

Drawing labels and relationships

The two detail drawings use the following labels and callouts.

  • Elevation View: The callouts identify “12" SEPTIC SAND,” “4" ø PVC SLEEVE THROUGH FOUNDATION, TYP.,” “COMPACTED FILL,” “RESTRICTIVE LAYER (TO BE FIELD DETERMINED),” and “FOUNDATION WALL.”
  • Profile View: The callouts identify “4" ø PVC SLEEVE THROUGH FOUNDATION, TYP.,” “12" SEPTIC SAND,” “COMPACTED CONSTRUCTION SAND,” “COMPACTED FILL,” “RESTRICTIVE LAYER (TO BE FIELD DETERMINED),” and “FOUNDATION WALL.”
  • Handwritten note: “Flow Thru Foundation,” “156 Sandy Beach Rd,” and “Goshen.” The date shown beside the note is “5-7-12.”
