Site Development & Grading Plan — Tyler Lake

Plot layout showing existing house to be razed, proposed residence, deck on piers, property boundaries, and environmental contours.

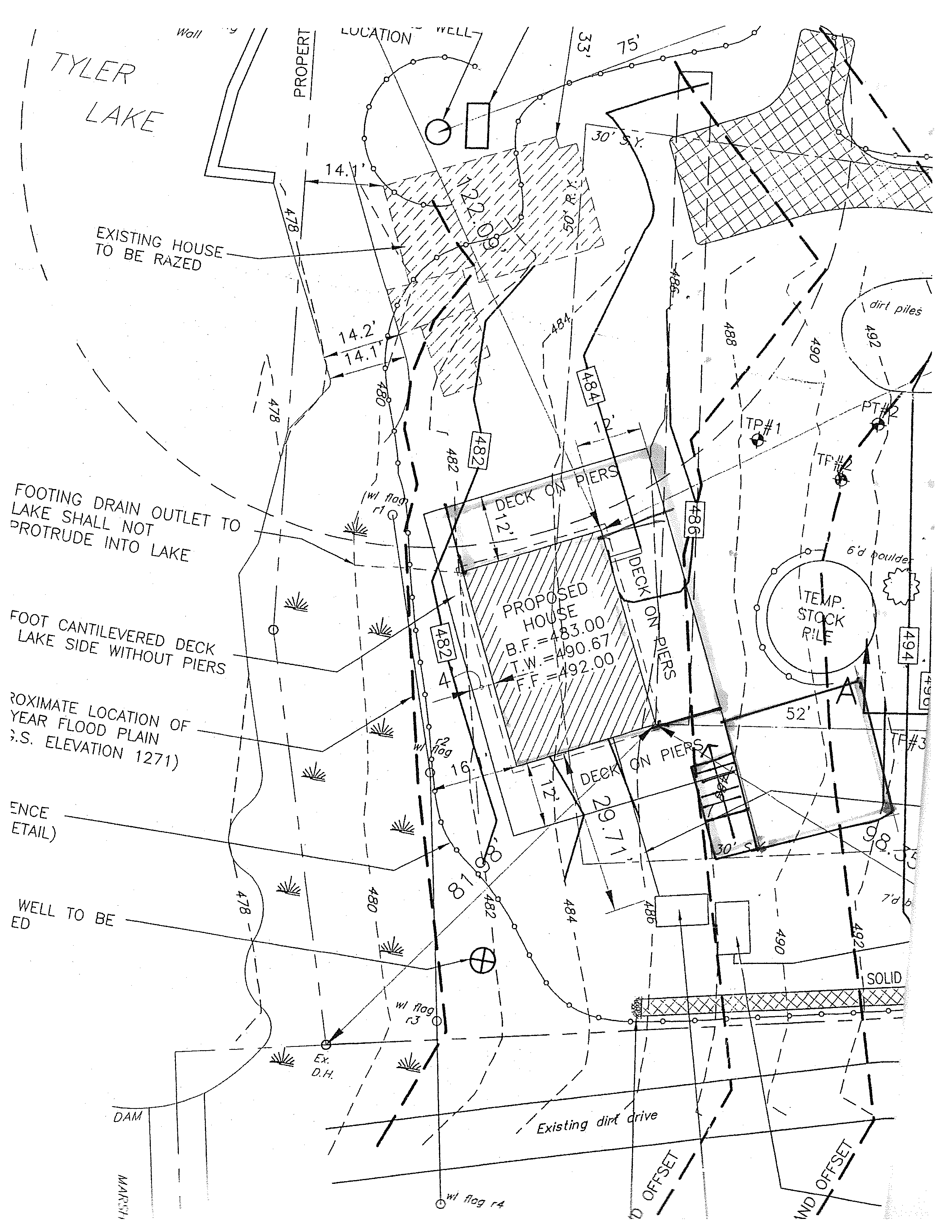

Complete engineering site and grading plan for Tyler Lake showing Tyler Lake, the existing house to be razed, proposed house and decks, property boundaries, dimensions, elevations, contours, driveway, well, test pits, stockpile, and site notes.

Open full-resolution plan

Accessible view

Plan orientation and arrangement

The drawing is a site and grading plan for a parcel beside TYLER LAKE. In the plan view, the lake is at the left/lakeside edge; the existing house marked EXISTING HOUSE TO BE RAZED is at the upper left, and the hatched PROPOSED HOUSE is near the center. The deck, property lines, contours, notes, and dimension strings are shown in their drawn positions.

Proposed house and elevation callouts

Scroll horizontally to view all elevation columns.

Plan callout Value Meaning shown in plan
F.F. 492.00 First floor elevation
T.W. 490.67 Top of wall elevation
B.F. 483.00 Basement floor elevation
100-year flood plain Approximate elevation 1271 (G.S.) Approximate location called out on plan
  • The proposed house is labeled with B.F. = 483.00, T.W. = 490.67, and F.F. = 492.00.
  • Deck labels identify a deck on piers at the lake side, a deck on piers at the right side, and a lower deck on piers reached by stairs. The upper deck dimension is 12'; the plan also labels a 4' lakeside cantilever, 29.71', 30', and a 52' building dimension.

Dimensions, boundaries, and setbacks

  • Dimension strings at the lakeside/structure edge show 14.1', 14.2', and 16'.
  • Other setback callouts include 30' S.Y., 33', 50', 50' R.Y., and 75'. The drawing also shows a 122.09' dimension associated with the existing-house area and an 81' dimension along the lower-left side of the proposed-house area.
  • Property lines, the lake line, a setback line, contour lines, and a fence line are drawn around the house and site. The plan includes the note FENCE (DETAIL).

Site features and plan notes

  • Existing house: The upper-left structure is labeled EXISTING HOUSE TO BE RAZED.
  • Well: A WELL LOCATION is marked near the upper part of the parcel. A separate lower-left note begins WELL TO BE; the remainder of that small raster label is not reliably legible here.
  • Lake protection: The note reads FOOTING DRAIN OUTLET TO LAKE SHALL NOT PROTRUDE INTO LAKE.
  • Lakeside deck: The note reads FOOT CANTILEVERED DECK LAKE SIDE WITHOUT PIERS.
  • Flood plain: The note reads APPROXIMATE LOCATION OF 100 YEAR FLOOD PLAIN (ELEVATION 1271).
  • Testing and materials: Test pits TP#1, TP#2, and TP#3, 1 dirt piles, a TEMP. STOCK PILE, and a 6' boulder callout are shown to the right of the proposed house.
  • Access and grading: An Existing dirt drive runs along the lower portion of the drawing. Contour labels visible on the plan include 478, 480, 482, 484, 486, 488, 490, 492, and 494.
  • Wetland flags: Shoreline markers are labeled wl flag r1, wl flag r2, wl flag r3, and wl flag r4.
