Site Plan & Property Layout

Brandon & Hillary Amburget — 151 W. Hadley Rd., Dayton, OH 45419

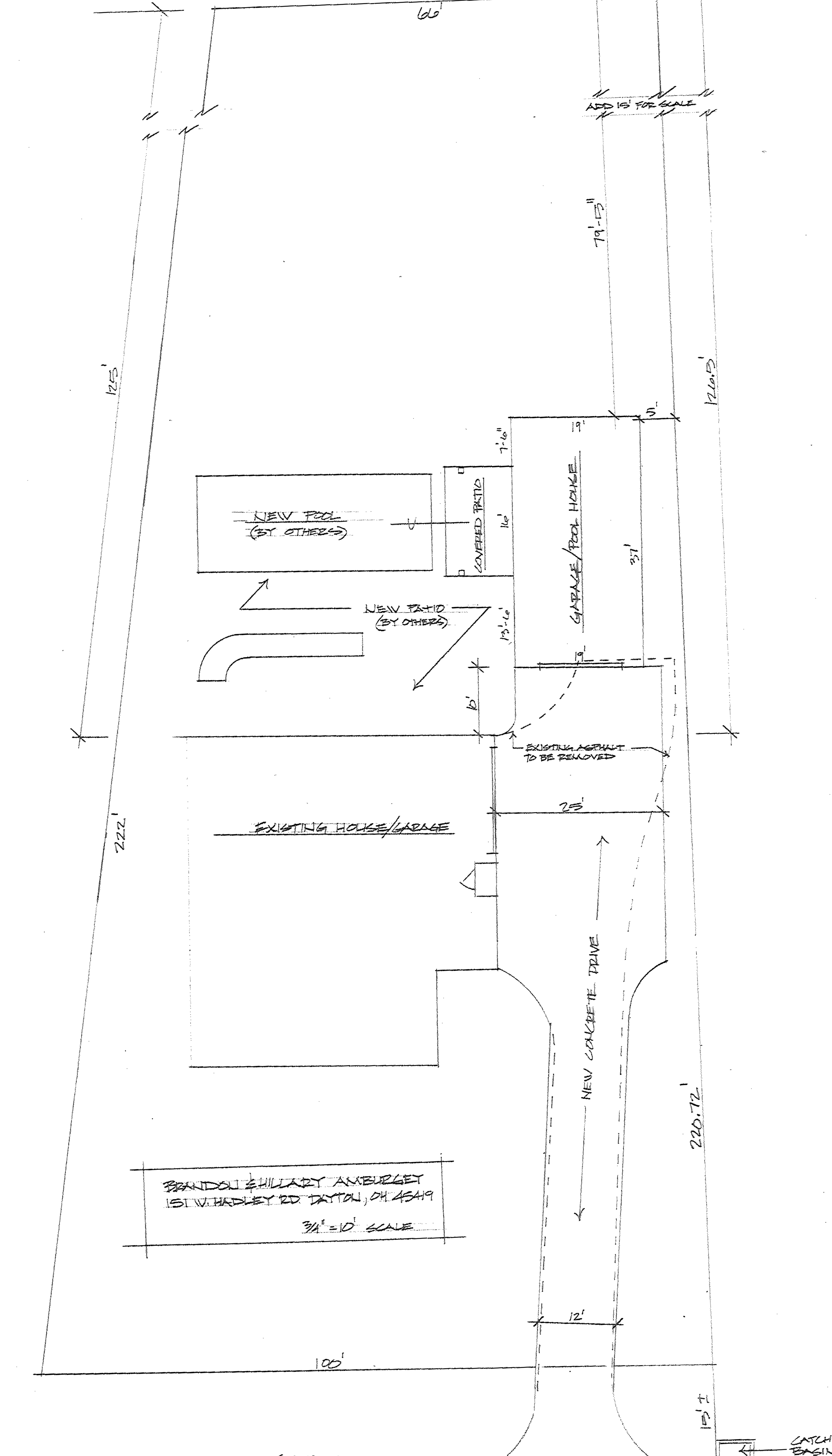

Hand-drawn architectural site plan for 151 W. Hadley Rd, Dayton, OH. Depicts property lot boundaries, existing house and garage, proposed garage/pool house, covered patio, new pool (by others), new patio (by others), and a new 12-foot wide concrete drive connecting to the street curb.
Accessible view

Project & Location Information

  • Owners: Brandon & Hillary Amburget
  • Address: 151 W. Hadley Rd., Dayton, OH 45419
  • Scale: ¾″ = 10′ Scale

Boundary Dimensions

  • North Boundary: 66′
  • South Boundary (Street Curb): 100′
  • West Property Line: 125′ / 222′
  • East Property Line: 79′-10″ / 220.72′ (126.3′ segment indicated with “Add 15′ for scale”)

Structures & Proposed Improvements

  • Existing House / Garage: Located on the central-western section of the lot (25′ dimension indicated to drive transition).
  • Garage / Pool House: 19′ × 37′ structure with a 5′ setback from the eastern property line.
  • Covered Patio: 16′ × 7′-6″ attached to the pool house (13′-6″ and 10′ offset dimensions marked).
  • New Pool: Located northwest of the covered patio (“By Others”).
  • New Patio: Surrounding area connecting pool, covered patio, and house (“By Others”).
  • New Concrete Drive: 12′ width at the street curb, extending north and expanding toward the garage/pool house.
  • Demolition / Removal: Existing asphalt marked “to be removed” in front of the garage.
  • Utilities: Catch Basin located at the southeast street curb corner.
