Brandon & Hillary Amburget – Garage / Pool House Plan

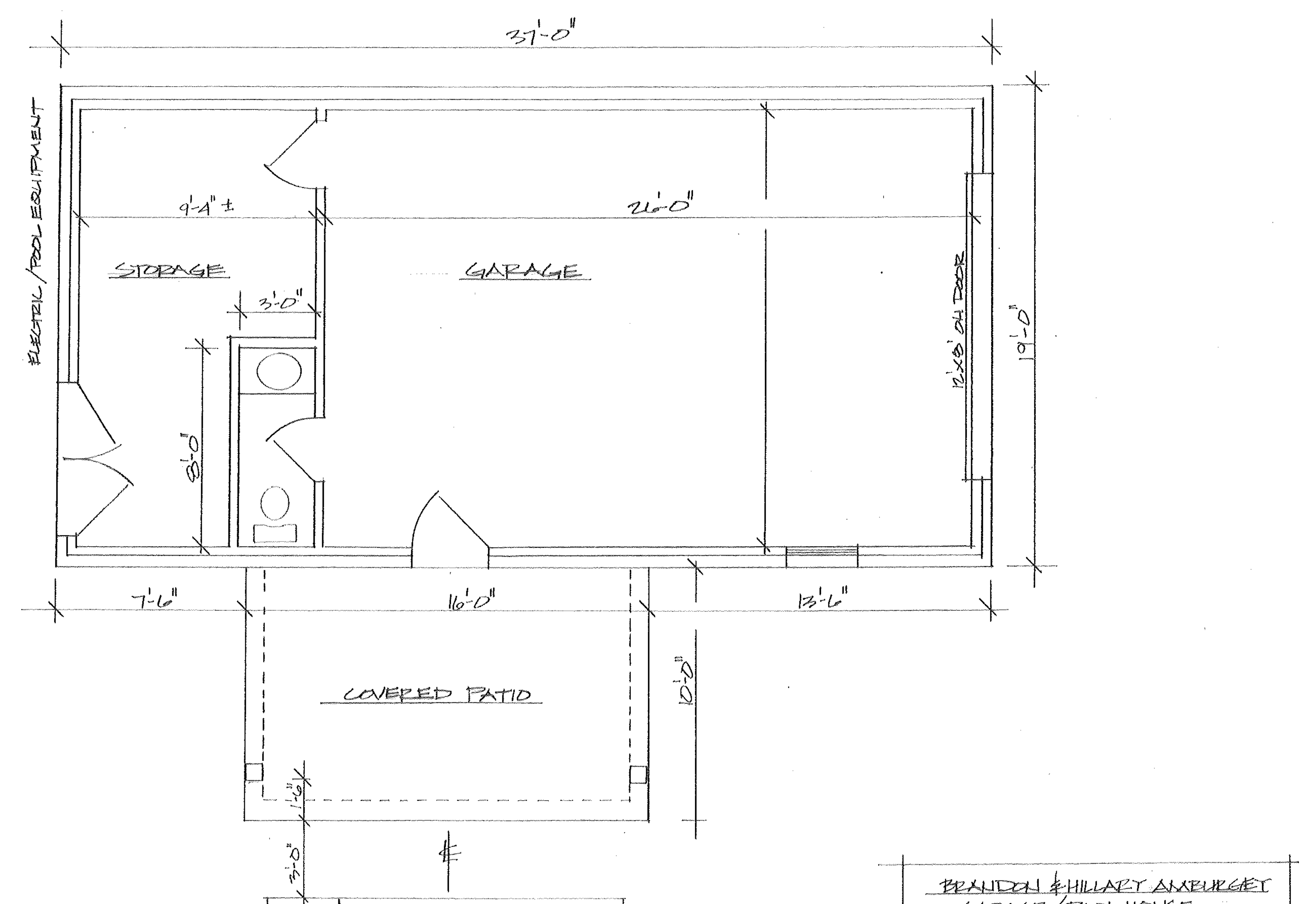

Architectural floor plan with the labelled areas STORAGE, GARAGE, and COVERED PATIO, dimension lines, door symbols, and fixture symbols

Accessible view

Literal plan transcription

The drawing remains the authoritative view for linework and symbols. The following is limited to legible plan text, dimensions, and directly visible relationships; no room or fixture names are added where the drawing does not supply them.

Plan labels, dimensions, and symbols

Plan item	Legible text or symbol	Location / relationship	Qualification
Named areas	STORAGE; GARAGE; COVERED PATIO	Storage is at left, garage is to its right, and covered patio is below the main rectangle.	Labels as drawn.
Overall width	37′-0″	Dimension line above the main rectangle.	As written.
Main depth	19′-3″	Exterior dimension line at the right side of the main rectangle.	As written.
Upper horizontal dimensions	9′-4″ ±; 21′-0″	Dimension lines above the left and garage areas.	The ± marker is retained.
Lower horizontal dimensions	7′-6″; 16′-0″; 13′-6″	Segments along the lower edge of the main rectangle, from left to right.	As written.
Narrow room dimensions	3′-0″; 8′-0″	Dimension marks beside the narrow room between storage and garage.	Room is not named on the plan.
Right-wall door	12′×8′ O.H. DOOR	Notation is placed at the right exterior wall.	Handwritten notation as shown.
Other door symbols	Double-door and hinged-door swing symbols	Double doors are drawn at the left exterior wall; hinged-door symbols are also drawn at the upper wall, the narrow-room/garage side, and the lower wall.	Symbol locations are preserved; unsupported door names are omitted.
Fixtures	Two drawn plumbing-fixture symbols	Inside the narrow room between storage and garage.	Fixture names are not added.
