Brandon & Hillary Amburgy

Garage / Pool House — Architectural Elevations

Scale: ¼″ = 1′-0″

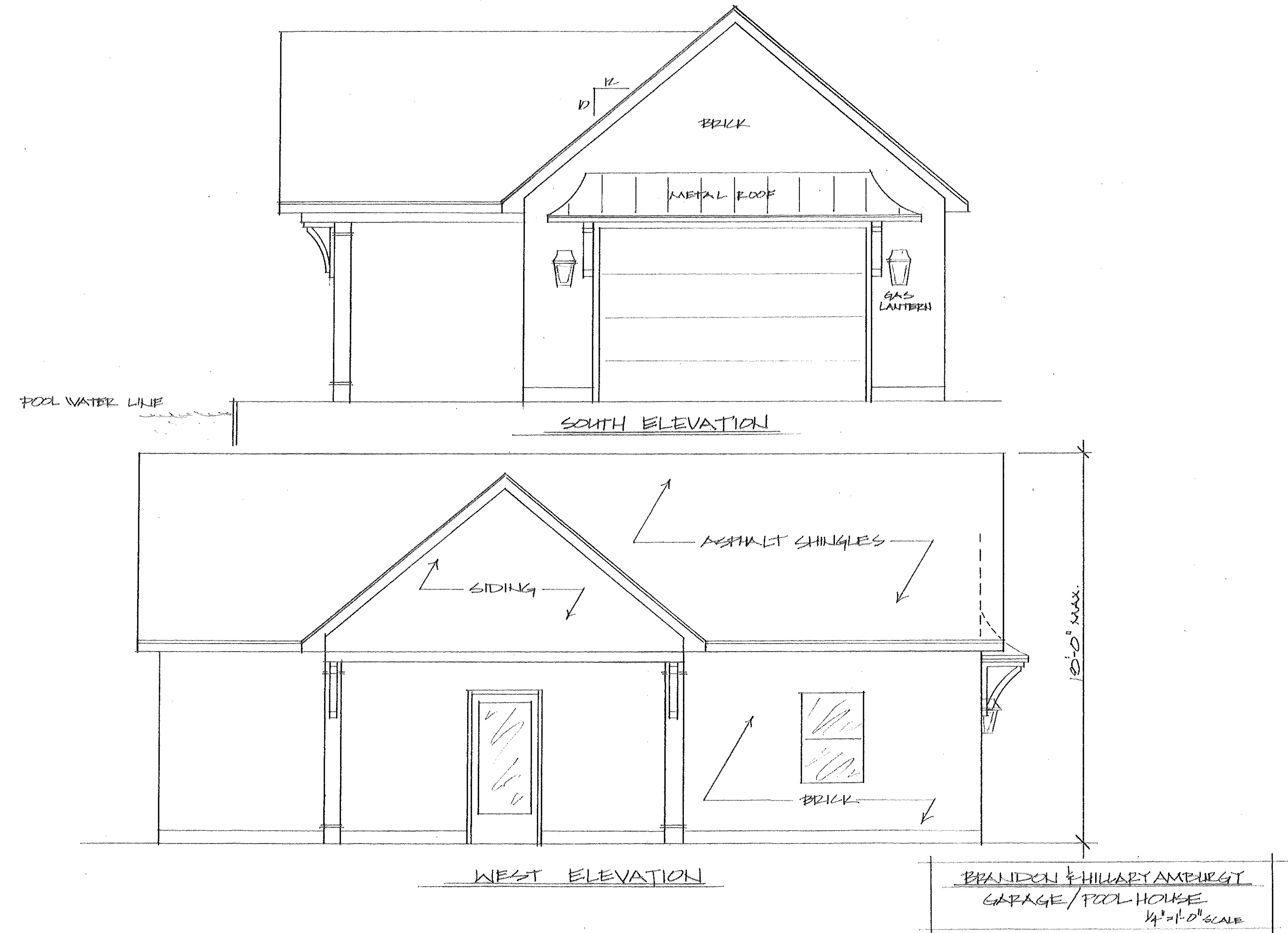

Architectural elevation drawings for Brandon and Hillary Amburgy Garage / Pool House, showing South Elevation and West Elevation with material specifications and 18'-0" maximum height dimension. Open full-size drawing
Accessible view

South Elevation

  • Roof Pitch: 10:12 slope
  • Gable Wall Finish: Brick
  • Canopy: Metal roof awning over single garage door opening
  • Lighting: Flanking gas lanterns on either side of garage door
  • Exterior Site Reference: Pool water line indicated at left retaining wall/grade

West Elevation

  • Main Roof: Asphalt shingles
  • Gable Accent: Siding
  • Lower Exterior Walls: Brick
  • Openings & Features: Covered entry porch with posts and bracket details, full-lite entry door, and double-hung window
  • Overall dimension: 18′-0″ max. overall height to ridge

Title Block / Project Information

  • Clients: Brandon & Hillary Amburgy
  • Structure: Garage / Pool House
  • Drawing Scale: ¼″ = 1′-0″
