City of Oakwood

Shroyer Road Improvement Concept Plan

STA. 61+00 TO STA. 72+00
Horizontal: 1" = 50'
SAK / SAK
03 / 03
Title block showing City of Oakwood, Shroyer Road Improvement Concept Plan, scale, and sheet number 03/03

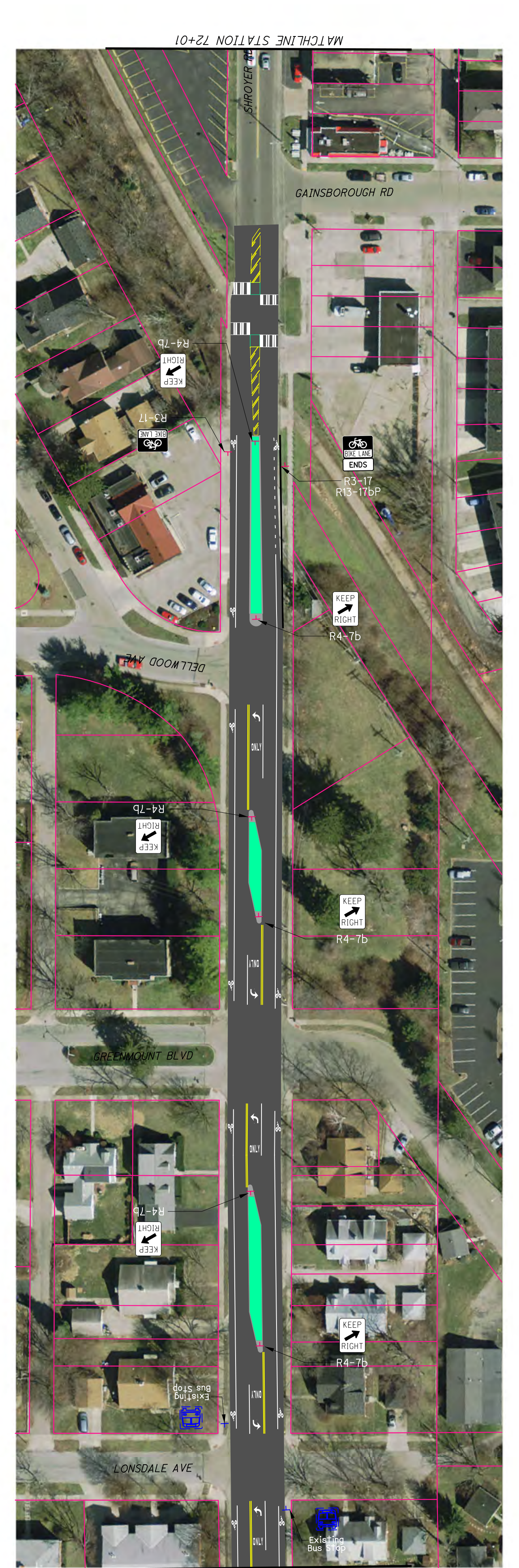

Plan View (STA 61+00 to STA 72+00)

Aerial map concept plan for Shroyer Road from Station 61+00 to 72+00
  • Matchline Start: Station 61+00
  • Matchline End: Station 72+01
  • Intersecting Streets: Lonsdale Ave, Greenmount Blvd, Dellwood Ave, Gainsborough Rd
  • Transit Facilities: Existing Bus Stops (near Sta 61+00 & Sta 63+00)
  • Traffic Signs: R4-7b (Keep Right), R3-17 (Bike Lane), R13-17bP (Bike Lane Ends)
  • Pavement Markings: Turn lanes with "ONLY" markings & arrows

Shroyer Road Typical Section

Shroyer Road Typical Section diagram showing lane widths and cross-section details
Element Width / Details
Ex. Treelawn & Sidewalk (West) Varies
Bike Lane (Southbound) 5'
Southbound Lane 11.5'
Center Median 11'
Northbound Lane 11.5'
Bike Lane (Northbound) 5'
Ex. Treelawn & Sidewalk (East) Varies
