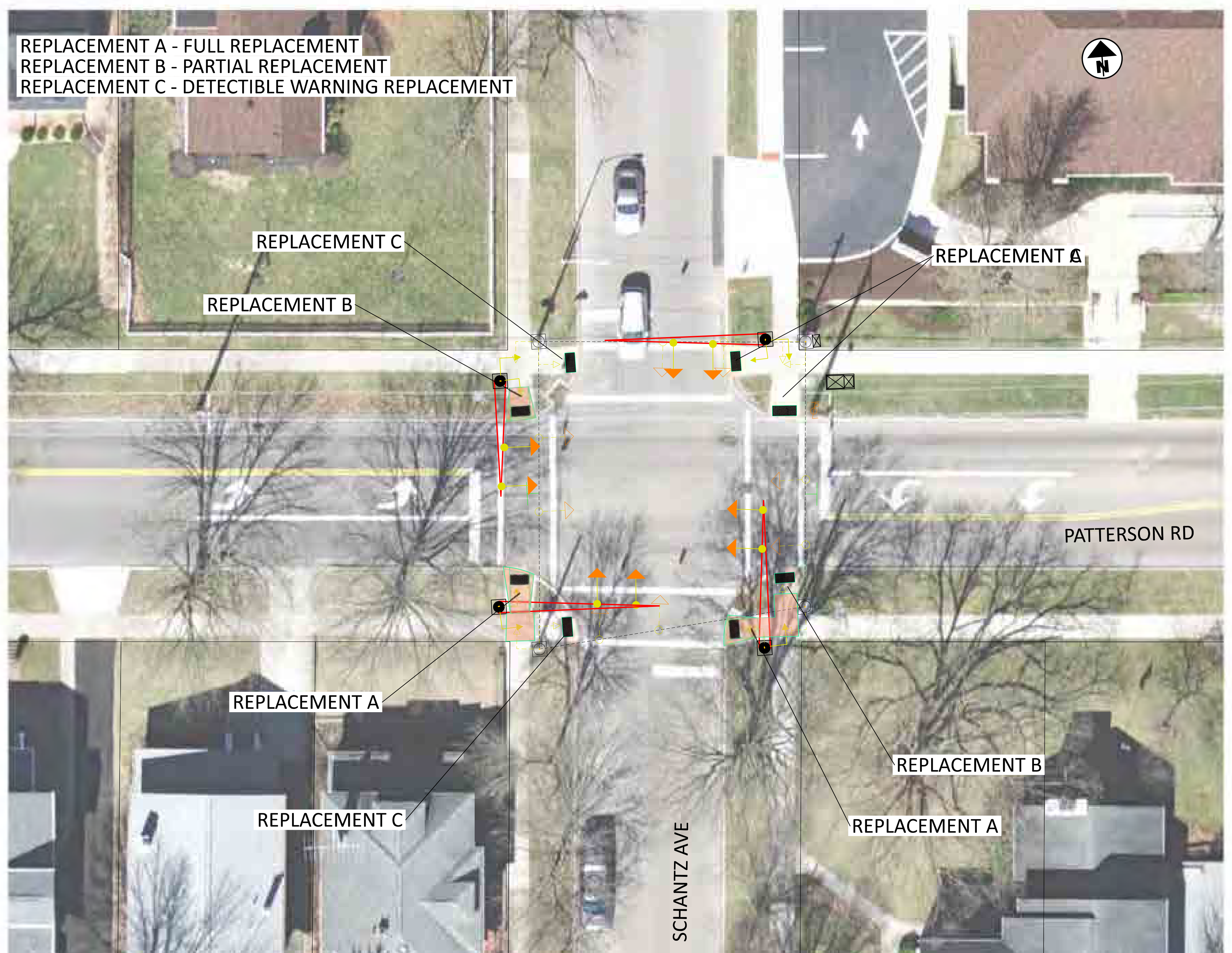

Schantz Ave & Patterson Rd Signal Concept Plan
Legend:
REPLACEMENT A
Full Replacement
REPLACEMENT B
Partial Replacement
REPLACEMENT C
Detectable Warning Replacement
Plan annotations and symbols
- The aerial plan labels the streets PATTERSON RD and SCHANTZ AVE and includes a north compass arrow.
- The plan legend and callouts use REPLACEMENT A - FULL REPLACEMENT, REPLACEMENT B - PARTIAL REPLACEMENT, and REPLACEMENT C - DETECTIBLE WARNING REPLACEMENT.
- Multiple A, B, and C callouts are placed around the intersection. The drawing also shows signal-layout lines, traffic-signal symbols, and orange directional arrows over the aerial background.
Horizontal Scale
Scale in Feet (0 - 20 ft)
Design Agency
Crawford, Murphy & Tilly, Inc. (CMT)
| Designer | Reviewer | Date |
|---|---|---|
| RTM | SAK | 01-06-23 |
| Project ID | ||
| 460700 | ||
| Sheet | Total | |
| P.0 | 0 | |
