Signal & Pedestrian Ramp Legend
REPLACEMENT A - FULL REPLACEMENT
REPLACEMENT B - PARTIAL REPLACEMENT
REPLACEMENT C - DETECTABLE WARNING REPLACEMENT

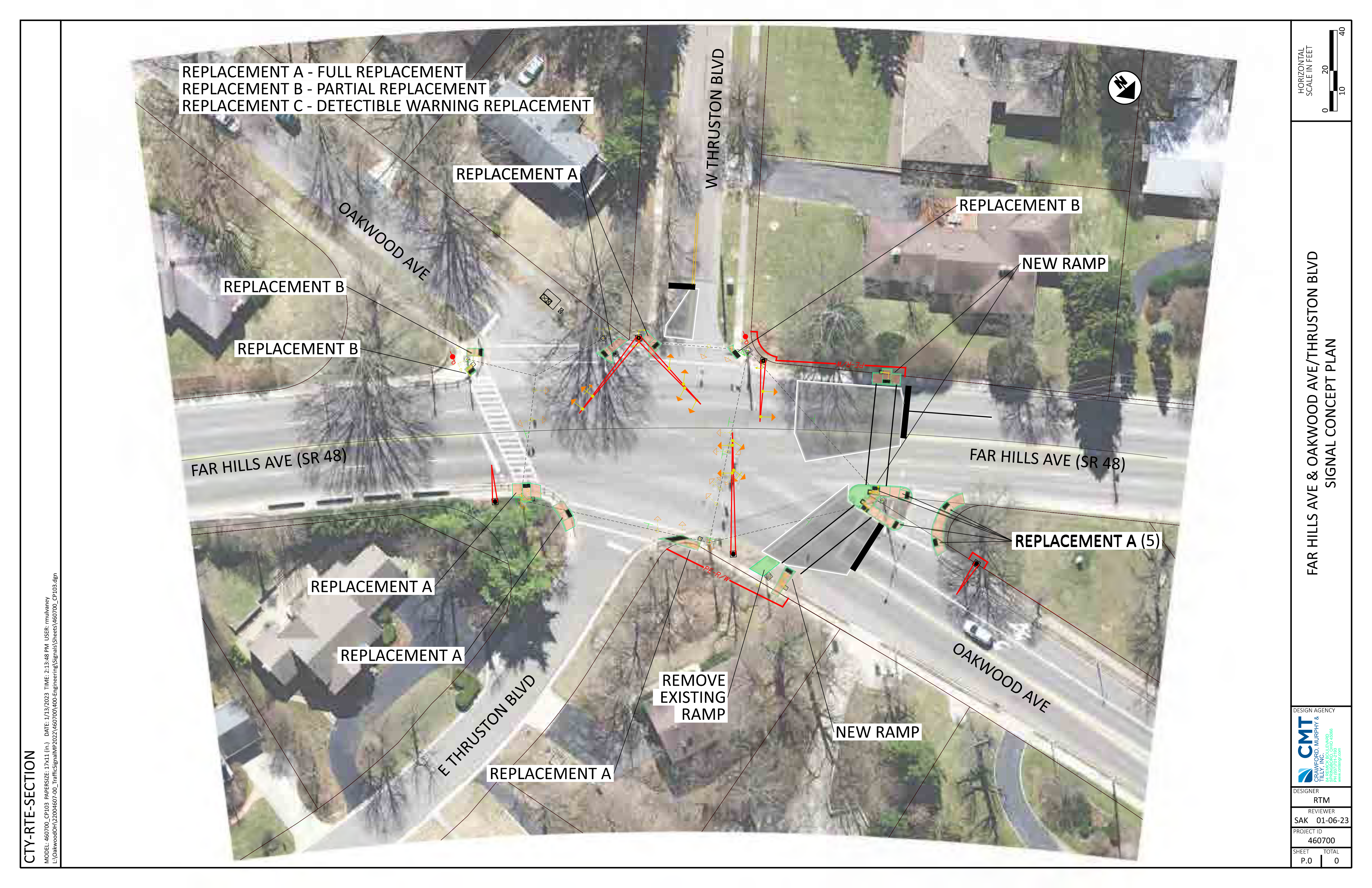

Aerial signal concept plan for Far Hills Ave and Oakwood Ave/Thruston Blvd, including the intersection layout, signal elements, pedestrian ramp work, callouts, roadway labels, markings, and north arrow.

Aerial signal concept plan — select the plan to enlarge the source sheet.

Horizontal Scale in Feet
0   10   20   40
Far Hills Ave & Oakwood Ave/Thruston Blvd
Signal Concept Plan
Design Agency
CMT
Crawford, Murphy & Tilly, Inc.
Designer
RTM
Reviewer
SAK 01-06-23
Project ID
460700
Sheet Total
P.0 0
CTY-RTE-SECTION: MODEL: 460700_CP103 | PAPERSIZE: 17x11 (in.) | DATE: 1/13/2023 | TIME: 2:13:48 PM | USER: rmulvaney
I:\Oakwood\460700_CP103\TrafficSignal\2022\460700_EngineeringSignals\Sheets\460700_CP103.dgn
