Far Hills Ave & Park Ave Signal Concept Plan

City Route Section Concept Drawing | Date: 01-06-23

Key / Legend
  • REPLACEMENT A - FULL REPLACEMENT
  • REPLACEMENT B - PARTIAL REPLACEMENT
  • REPLACEMENT C - DETECTIBLE WARNING REPLACEMENT

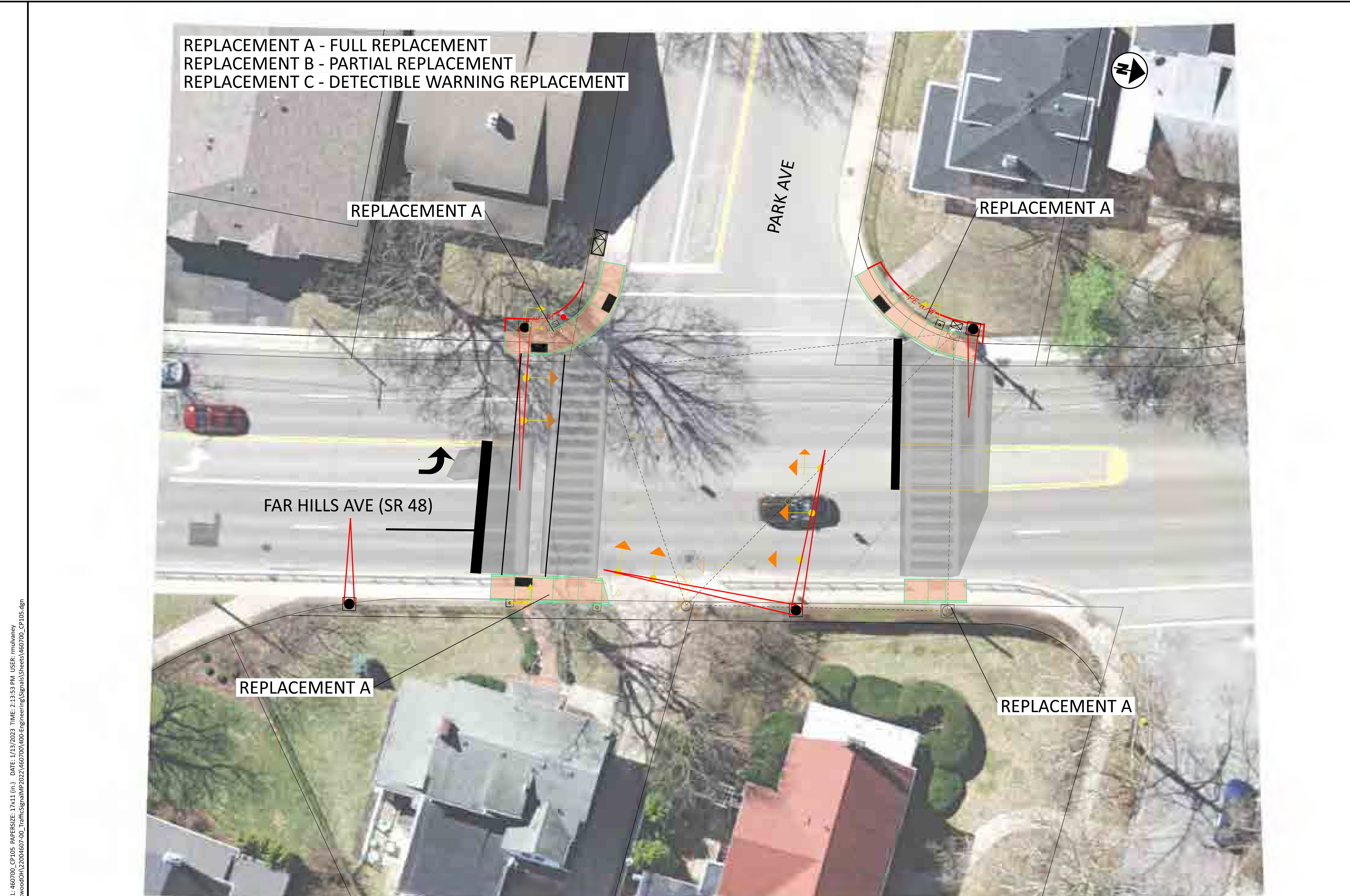

Far Hills Ave (SR 48) and Park Ave Signal Concept Plan aerial map view showing intersection layout, signal heads, crosswalks, right-of-way lines, and replacement locations.Open full-resolution plan image
LocationFar Hills Ave (SR 48) & Park Ave
ScaleHorizontal Scale in Feet: 0, 10, 20
Design AgencyCrawford, Murphy & Tilly, Inc. (CMT)
PersonnelDesigner: RTM | Reviewer: SAK (01-06-23)

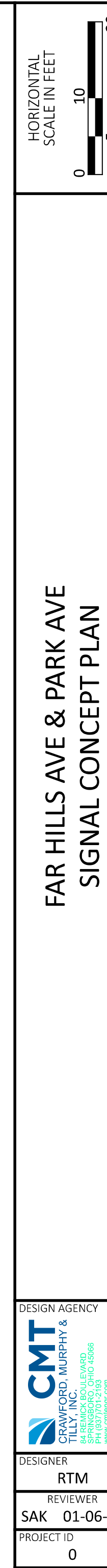

Sheet InfoSheet P.0 / Total 0 | Project ID: 0
