Signal Warrant SR 48 and Harman
Chart description

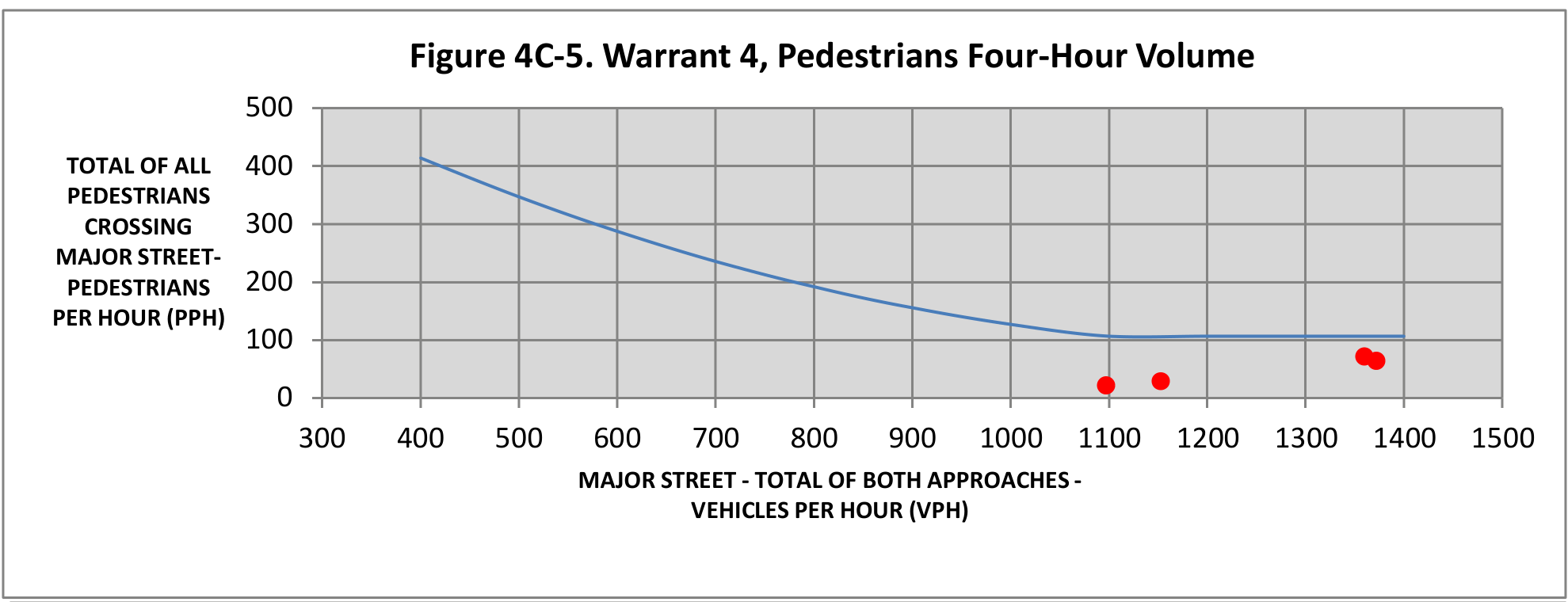

Figure 4C-5. Warrant 4, Pedestrians Four-Hour Volume
TOTAL OF ALL PEDESTRIANS CROSSING MAJOR STREET - PEDESTRIANS PER HOUR (PPH): 500, 400, 300, 200, 100, 0.
MAJOR STREET - TOTAL OF BOTH APPROACHES - VEHICLES PER HOUR (VPH): 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300, 1400, 1500.
Chart description

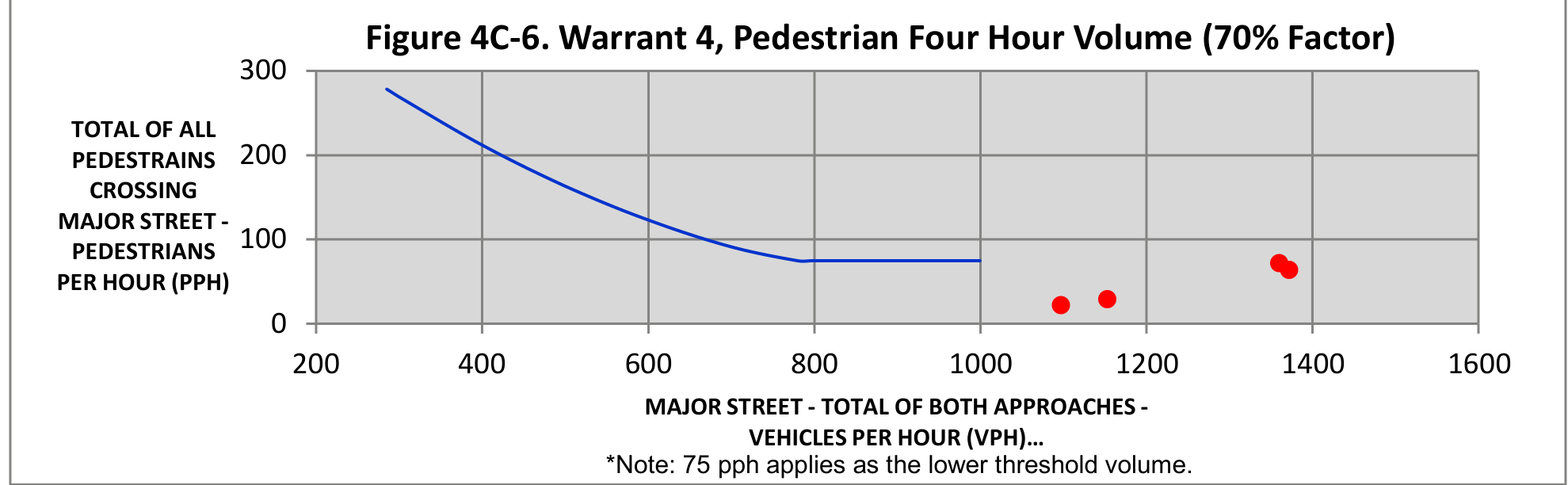

Figure 4C-6. Warrant 4, Pedestrian Four Hour Volume (70% Factor)
TOTAL OF ALL PEDESTRIANS CROSSING MAJOR STREET - PEDESTRIANS PER HOUR (PPH): 300, 200, 100, 0.
MAJOR STREET - TOTAL OF BOTH APPROACHES - VEHICLES PER HOUR (VPH): 200, 400, 600, 800, 1000, 1200, 1400, 1600.
*Note: 75 pph applies as the lower threshold volume.
Chart description

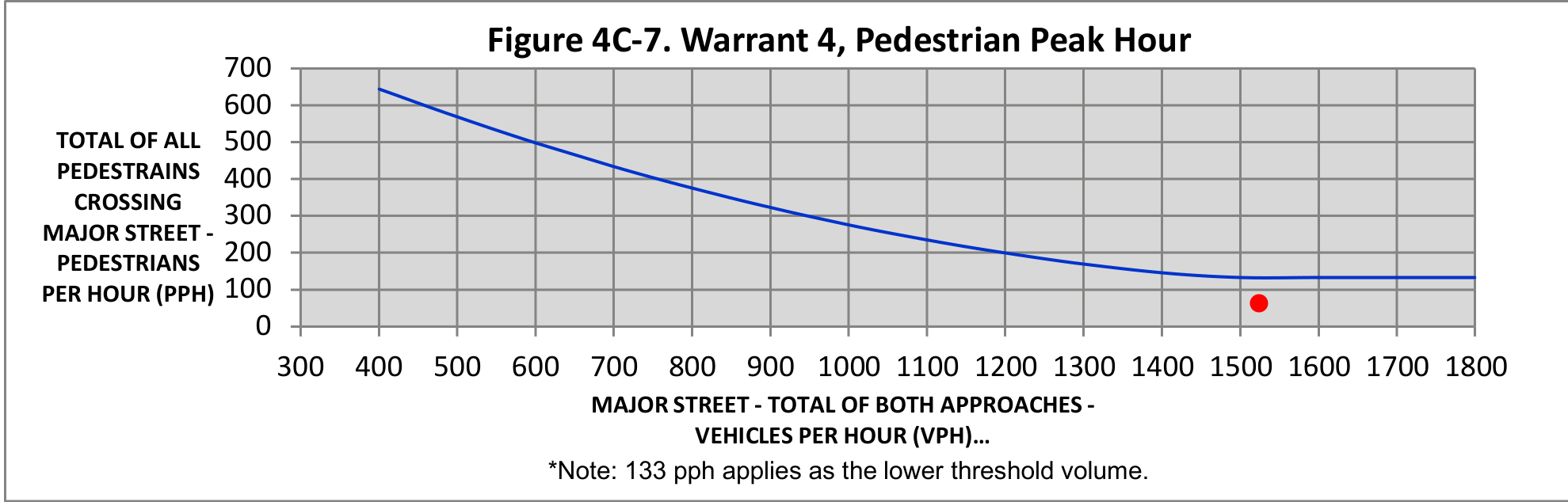

Figure 4C-7. Warrant 4, Pedestrian Peak Hour
TOTAL OF ALL PEDESTRIANS CROSSING MAJOR STREET - PEDESTRIANS PER HOUR (PPH): 700, 600, 500, 400, 300, 200, 100, 0.
MAJOR STREET - TOTAL OF BOTH APPROACHES - VEHICLES PER HOUR (VPH): 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800.
*Note: 133 pph applies as the lower threshold volume.
Chart description

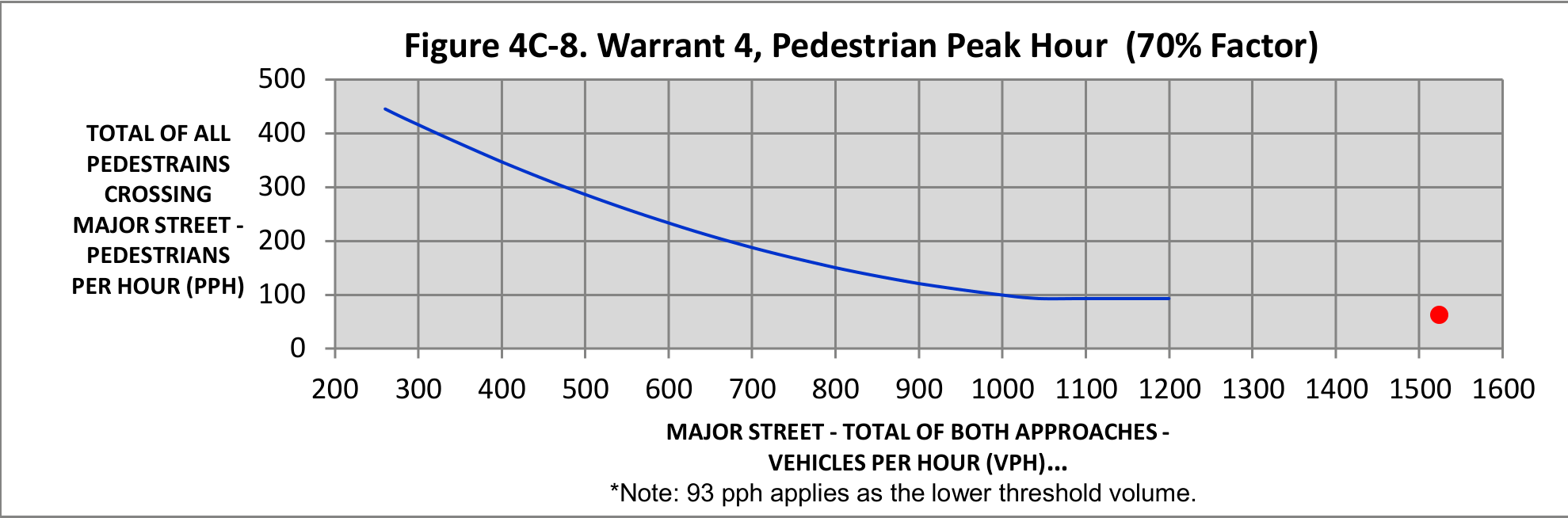

Figure 4C-8. Warrant 4, Pedestrian Peak Hour (70% Factor)
TOTAL OF ALL PEDESTRIANS CROSSING MAJOR STREET - PEDESTRIANS PER HOUR (PPH): 500, 400, 300, 200, 100, 0.
MAJOR STREET - TOTAL OF BOTH APPROACHES - VEHICLES PER HOUR (VPH): 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600.
*Note: 93 pph applies as the lower threshold volume.
