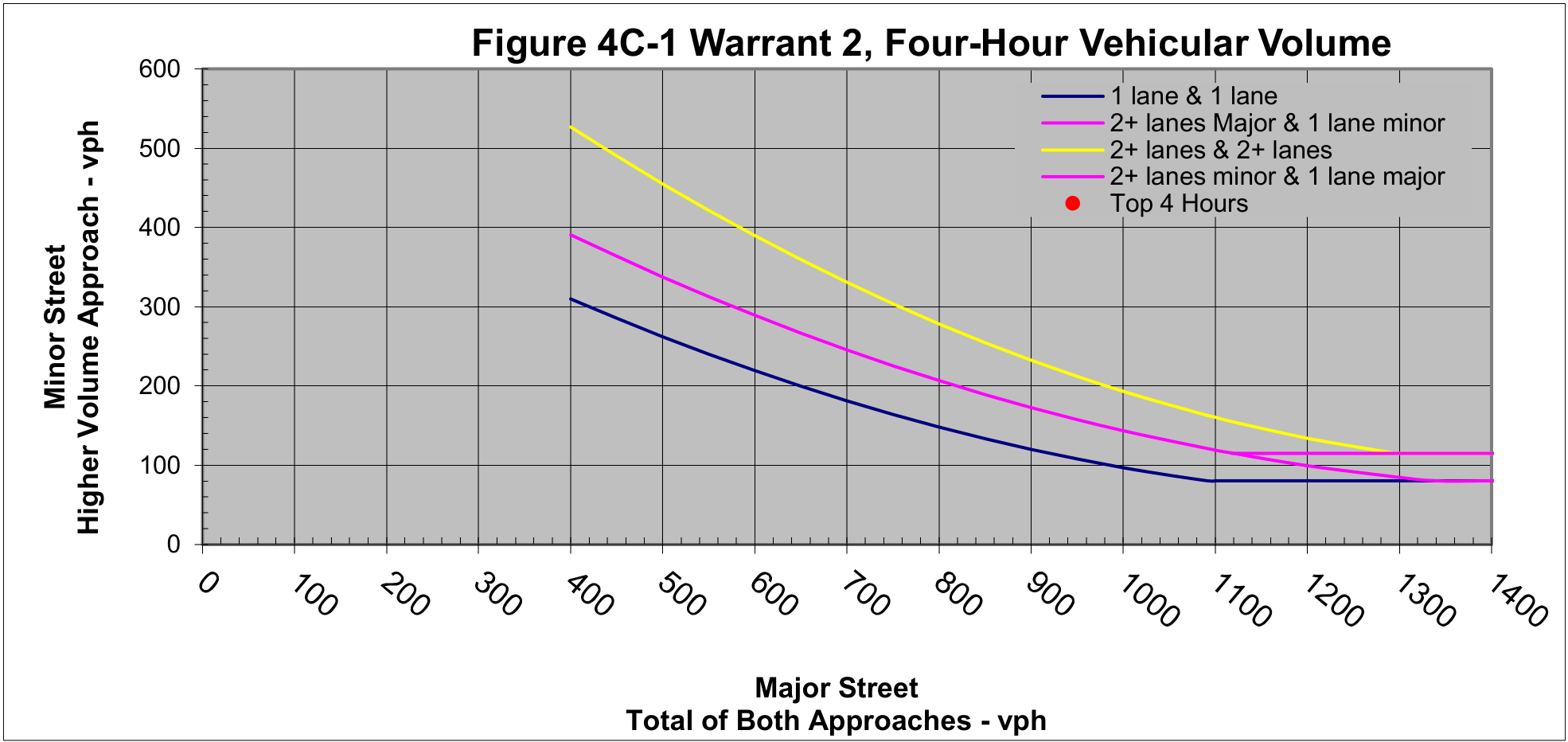

Figure 4C-1 Warrant 2, Four-Hour Vehicular Volume graph

Top Hours for Figure 4C-1	Start Time	End Time	Major Street	Minor Street
Top Hour	7:30 AM	8:30 AM	1479	82
2nd Highest Hour	7:30 AM	8:30 AM	1479	82
3rd Highest Hour	3:00 PM	4:00 PM	1550	55
4th Highest Hour	5:00 PM	6:00 PM	1761	38

Top Hours for Figure 4C-2	Start Time	End Time	Major Street	Minor Street
Top Hour	7:30 AM	8:30 AM	1479	82
2nd Highest Hour	12:00 AM	1:00 AM	0	55
3rd Highest Hour	3:00 PM	4:00 PM	1550	55
4th Highest Hour	5:00 PM	6:00 PM	1761	38

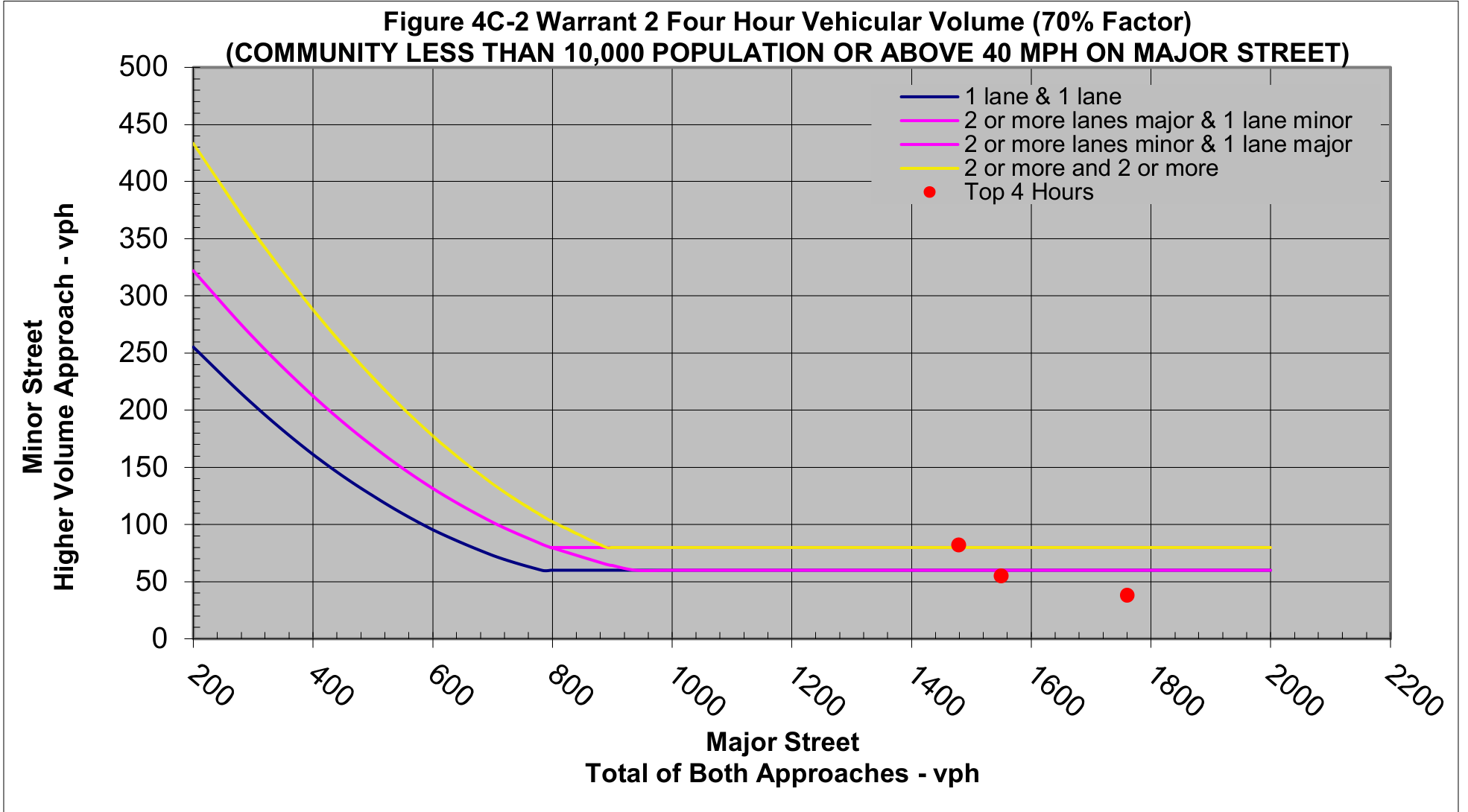

Figure 4C-2 Warrant 2 Four Hour Vehicular Volume (70% Factor) graph

Are the requirements for Warrant 2 met?:

No
