This four-leg intersection is analyzed assuming 2 lanes on the major street approach and 1 through lane on the minor street approach, resulting in the following:

Warrant #1. The minimum threshold for vehicles per hour on the higher volume, minor side street single lane approach is 120 vehicles when evaluating the combo warrant #1 at condition A and 60 vehicles at condition B. Although all highest eight hours exceeds the 120-vehicle threshold, only seven exceeded 60 vehicles. Warrant #1 is NOT satisfied.

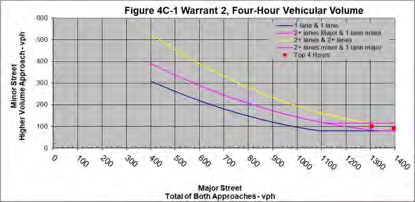

Warrant #2. Plotting the four highest volume-pairs as described in the methodology section on top of OMUTCD Figure 4C-1 (Figure 14A) resulted in all four volume pairs exceeding warrant #2 threshold. Warrant #2 is satisfied.

Warrant #3. Plotting the highest volume-pair as described in the methodology section on top of OMUTCD Figure 4C-3 resulted in the volume pair exceeding warrant #3 threshold. The higher minor street volume shown in Figure 14B is equal to 120 vehicles, which exceeds the 100 vehicles threshold. Warrant #3 is satisfied.

The existing traffic signal at the Far Hills Avenue and East Drive intersection is warranted as it meets signal warrant #2 and warrant #3.
