Signal Warrant SR 48 and Harman

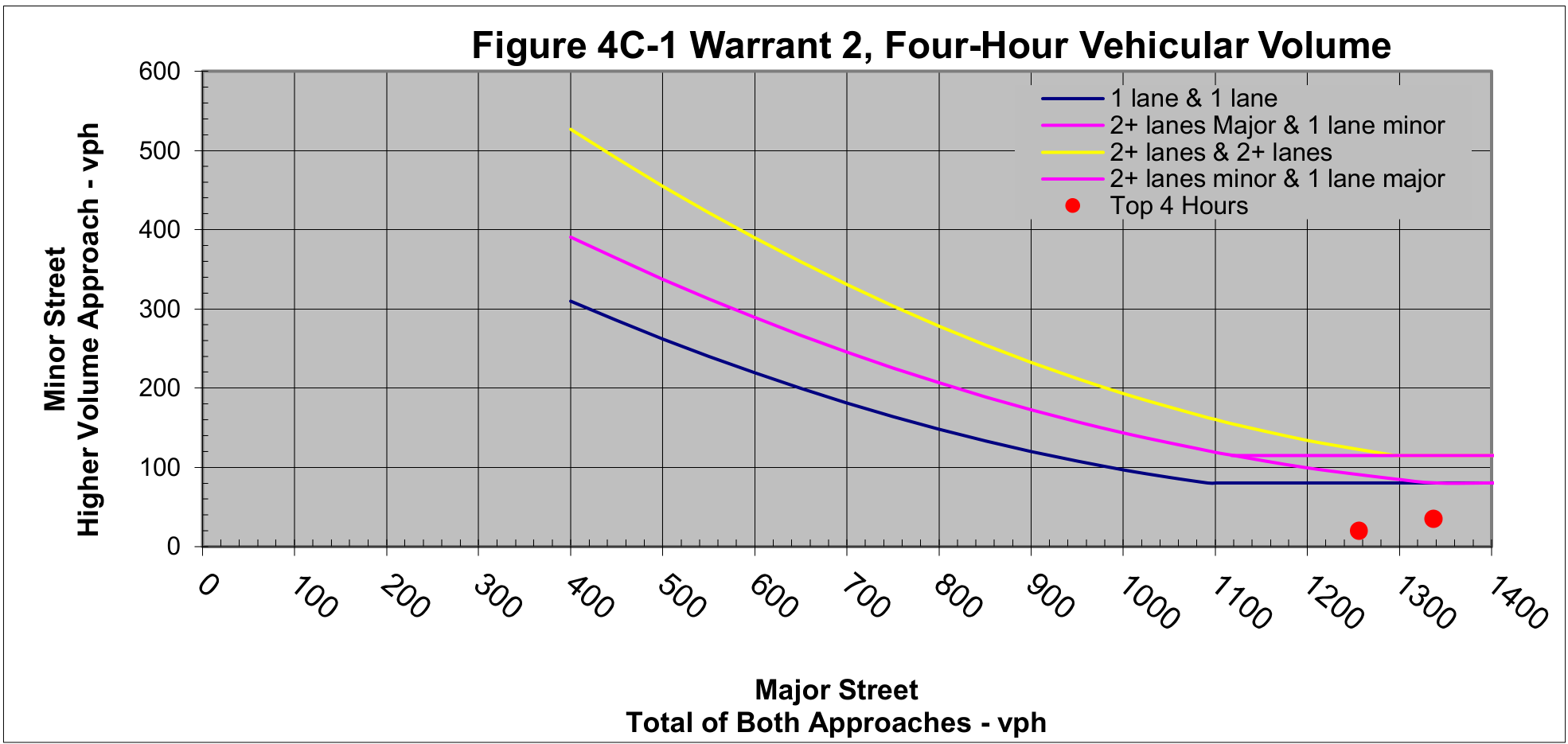

Figure 4C-1 Warrant 2, Four-Hour Vehicular Volume chart showing Higher Volume Approach (vph) vs Total of Both Approaches (vph)
Figure 4C-1 Warrant 2, Four-Hour Vehicular Volume chart showing Higher Volume Approach (vph) vs Total of Both Approaches (vph).
Top Hours for Figure 4C-1Start TimeEnd TimeMajor StreetMinor Street
Top Hour3:15 PM4:15 PM152447
2nd Highest Hour7:30 AM8:30 AM133735
3rd Highest Hour4:45 PM5:45 PM200928
4th Highest Hour2:15 PM3:15 PM125620
Top Hours for Figure 4C-2Start TimeEnd TimeMajor StreetMinor Street
Top Hour3:15 PM4:15 PM152447
2nd Highest Hour7:30 AM8:30 AM133735
3rd Highest Hour4:45 PM5:45 PM200928
4th Highest Hour2:15 PM3:15 PM125620

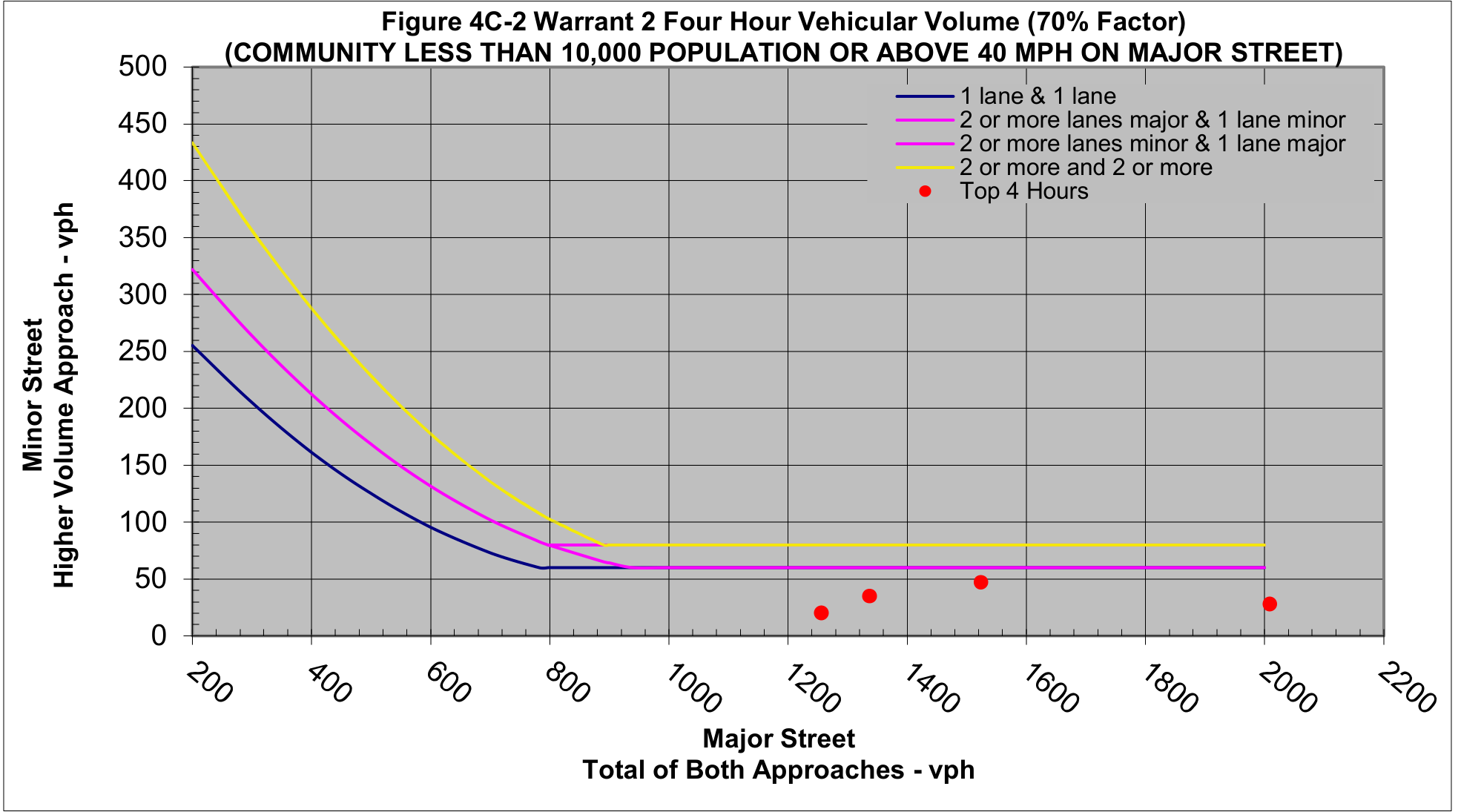

Figure 4C-2 Warrant 2 Four Hour Vehicular Volume (70% Factor) chart for community less than 10,000 population or above 40 mph on major street
Figure 4C-2 Warrant 2 Four Hour Vehicular Volume (70% Factor) chart for community less than 10,000 population or above 40 mph on major street.
Are the requirements for Warrant 2 met?:No
Published Jan. 2022Warrant 2Page 2
