Signal Warrant SR 48 and Aberdeen-Park

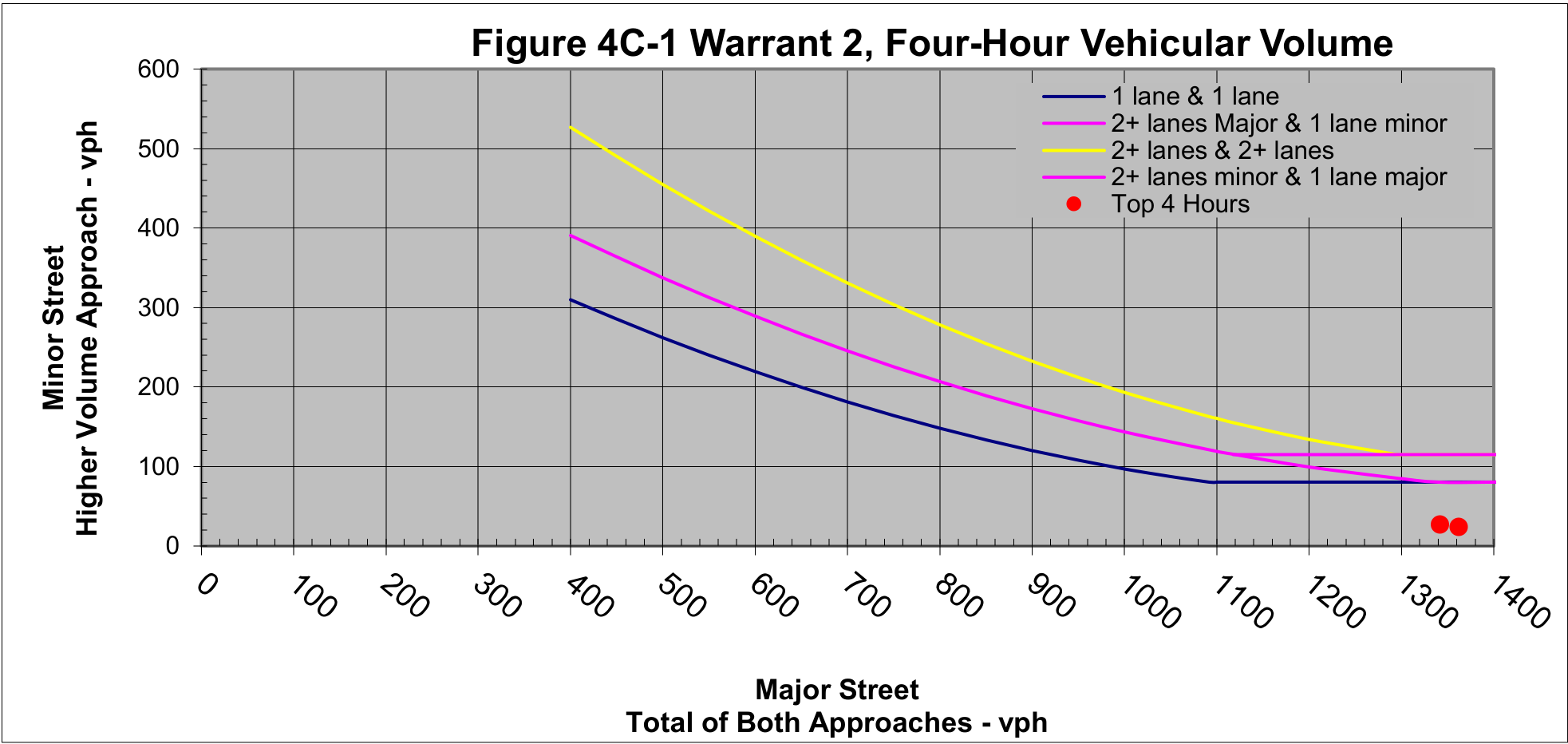

Figure 4C-1 Warrant 2, Four-Hour Vehicular Volume

Select the chart image to view it at full size.

Figure 4C-1 chart key
  • 1 lane & 1 lane
  • 2+ lanes Major & 1 lane minor
  • 2+ lanes & 2+ lanes
  • 2+ lanes minor & 1 lane major
  • Top 4 Hours
Top Hours for Figure 4C-1 Start Time End Time Major Street Minor Street
Top Hour 7:45 AM 8:45 AM 1342 27
2nd Highest Hour 4:45 PM 5:45 PM 1945 25
3rd Highest Hour 2:30 PM 3:30 PM 1362 24
4th Highest Hour 3:45 PM 4:45 PM 1607 18
Top Hours for Figure 4C-2 Start Time End Time Major Street Minor Street
Top Hour 7:45 AM 8:45 AM 1342 27
2nd Highest Hour 4:45 PM 5:45 PM 1945 25
3rd Highest Hour 2:30 PM 3:30 PM 1362 24
4th Highest Hour 3:45 PM 4:45 PM 1607 18

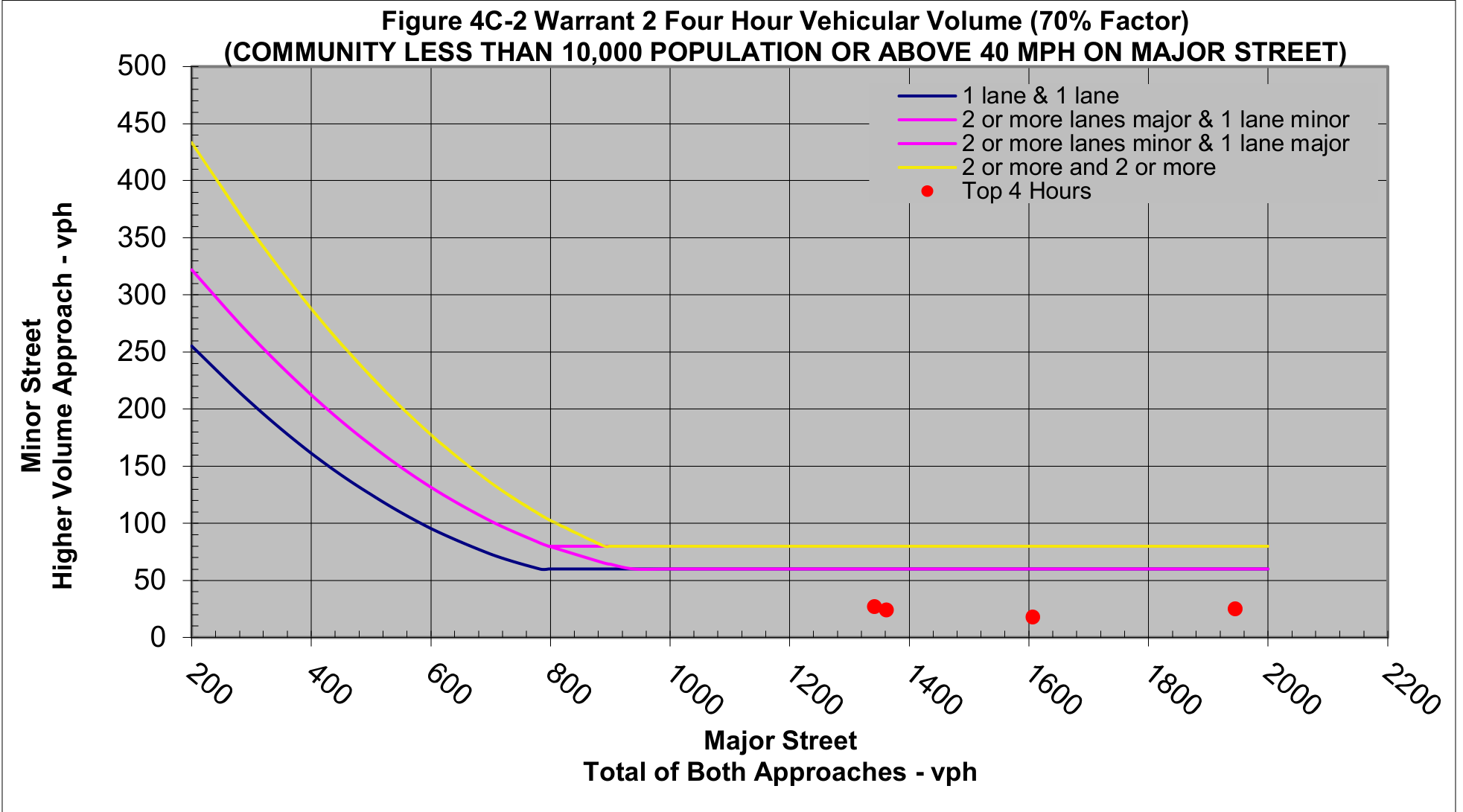

Figure 4C-2 Warrant 2 Four Hour Vehicular Volume (70% Factor) (COMMUNITY LESS THAN 10,000 POPULATION OR ABOVE 40 MPH ON MAJOR STREET)

Select the chart image to view it at full size.

Figure 4C-2 chart key
  • 1 lane & 1 lane
  • 2 or more lanes major & 1 lane minor
  • 2 or more lanes minor & 1 lane major
  • 2 or more and 2 or more
  • Top 4 Hours
Are the requirements for Warrant 2 met?: No
Published Jan. 2022
Warrant 2
Page 2
