Signal Warrant SR 48 and Springhouse-Old River Trail (9-22-22 Data)

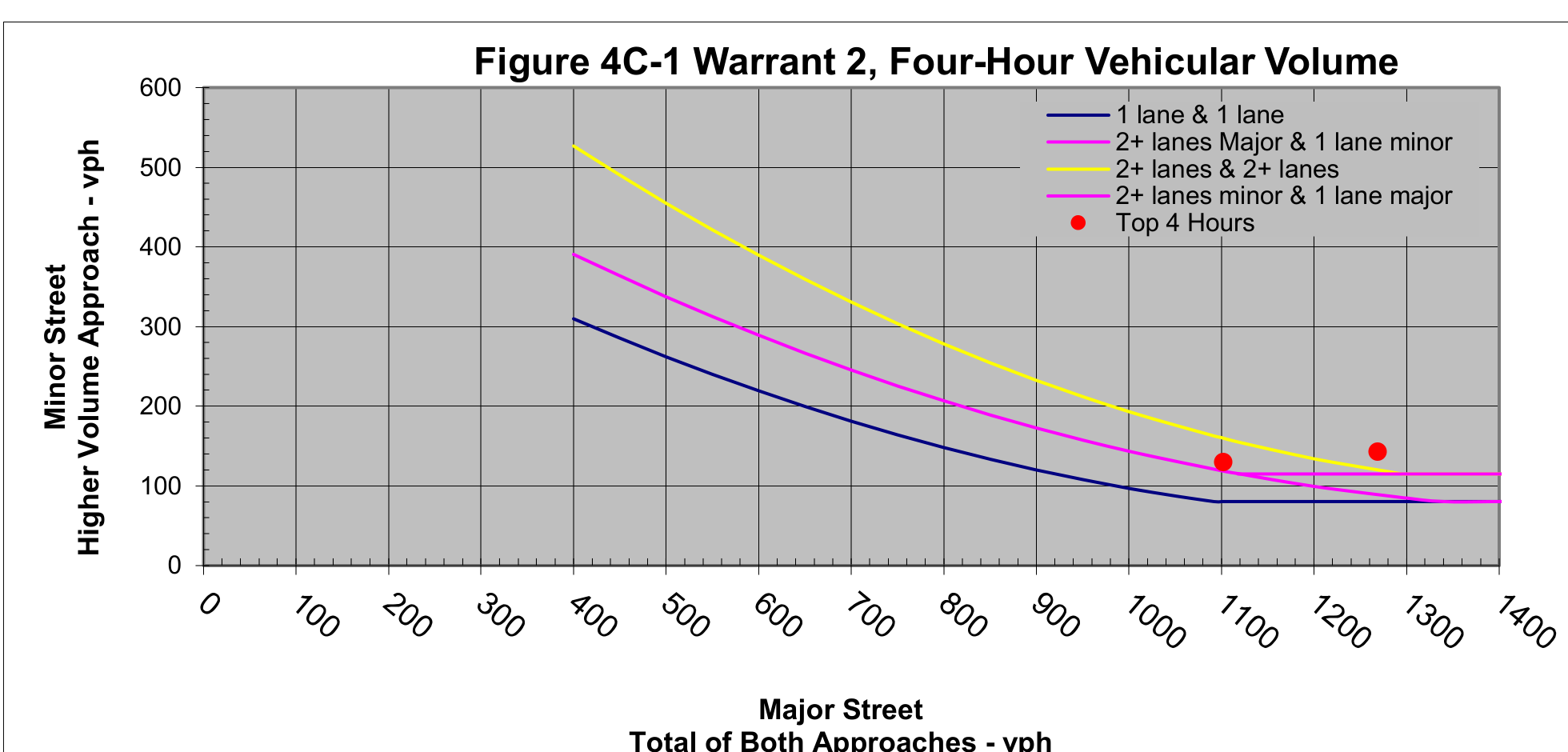

Figure 4C-1 Warrant 2, Four-Hour Vehicular Volume graph showing Minor Street Higher Volume Approach (vph) vs Major Street Total of Both Approaches (vph) with curves for lane configurations and data points for Top 4 Hours.
Top Hours for Figure 4C-1 Start Time End Time Major Street Minor Street
Top Hour 3:15 PM 4:15 PM 1269 143
2nd Highest Hour 5:15 PM 6:15 PM 1429 93
3rd Highest Hour 2:15 PM 3:15 PM 1102 130
4th Highest Hour 4:15 PM 5:15 PM 1590 83
Top Hours for Figure 4C-2 Start Time End Time Major Street Minor Street
Top Hour 2:45 PM 3:45 PM 1203 144
2nd Highest Hour 3:45 PM 4:45 PM 1374 101
3rd Highest Hour 4:45 PM 5:45 PM 1632 90
4th Highest Hour 5:45 PM 6:45 PM 1132 95

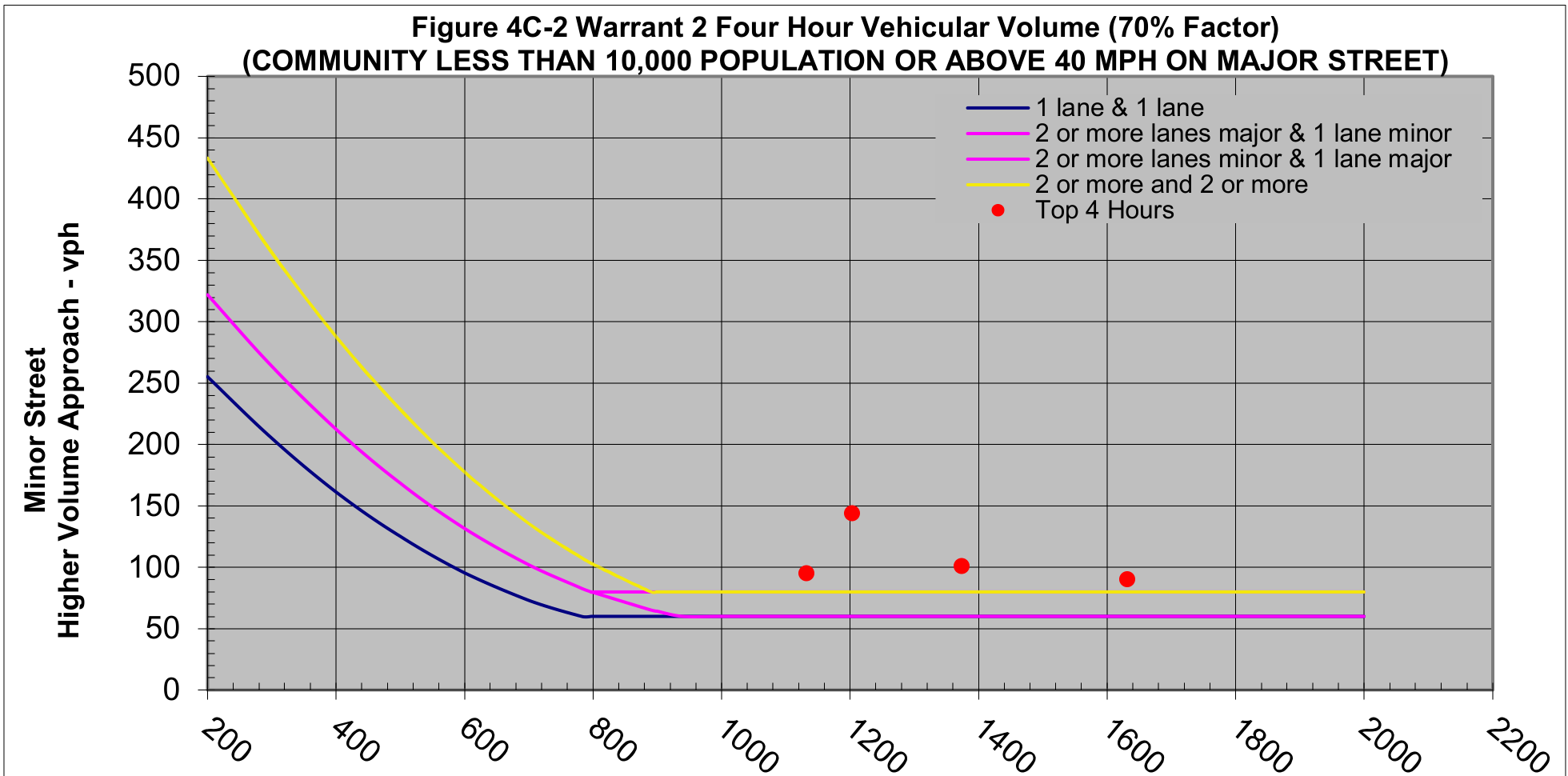

Figure 4C-2 Warrant 2 Four Hour Vehicular Volume (70% Factor) graph for community less than 10,000 population or above 40 mph on major street, showing plot lines and red data points for Top 4 Hours.
Are the requirements for Warrant 2 met?: Yes
