Warrants #4 and #5. There is no school nearby the intersection and the maximum number of pedestrians per hour crossing Oakwood Avenue was 11. Warrant #4 is NOT satisfied and Warrant #5 does not apply.

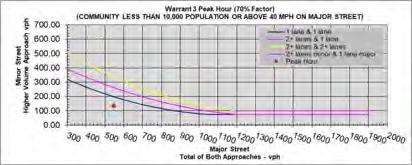

FIGURE 15B: SCHANTZ AVENUE AT OAKWOOD AVENUE WARRANT #3 (70% FACTOR)
FIGURE 15B: Warrant 3 Peak Hour (70% Factor) Chart for Schantz Avenue at Oakwood Avenue

The existing traffic signal at the Schantz Avenue and Oakwood Avenue intersection is not warranted due to traffic volumes being less than the required thresholds to meet any volume-based warrants.
