Signal Warrant Schantz and Kramer

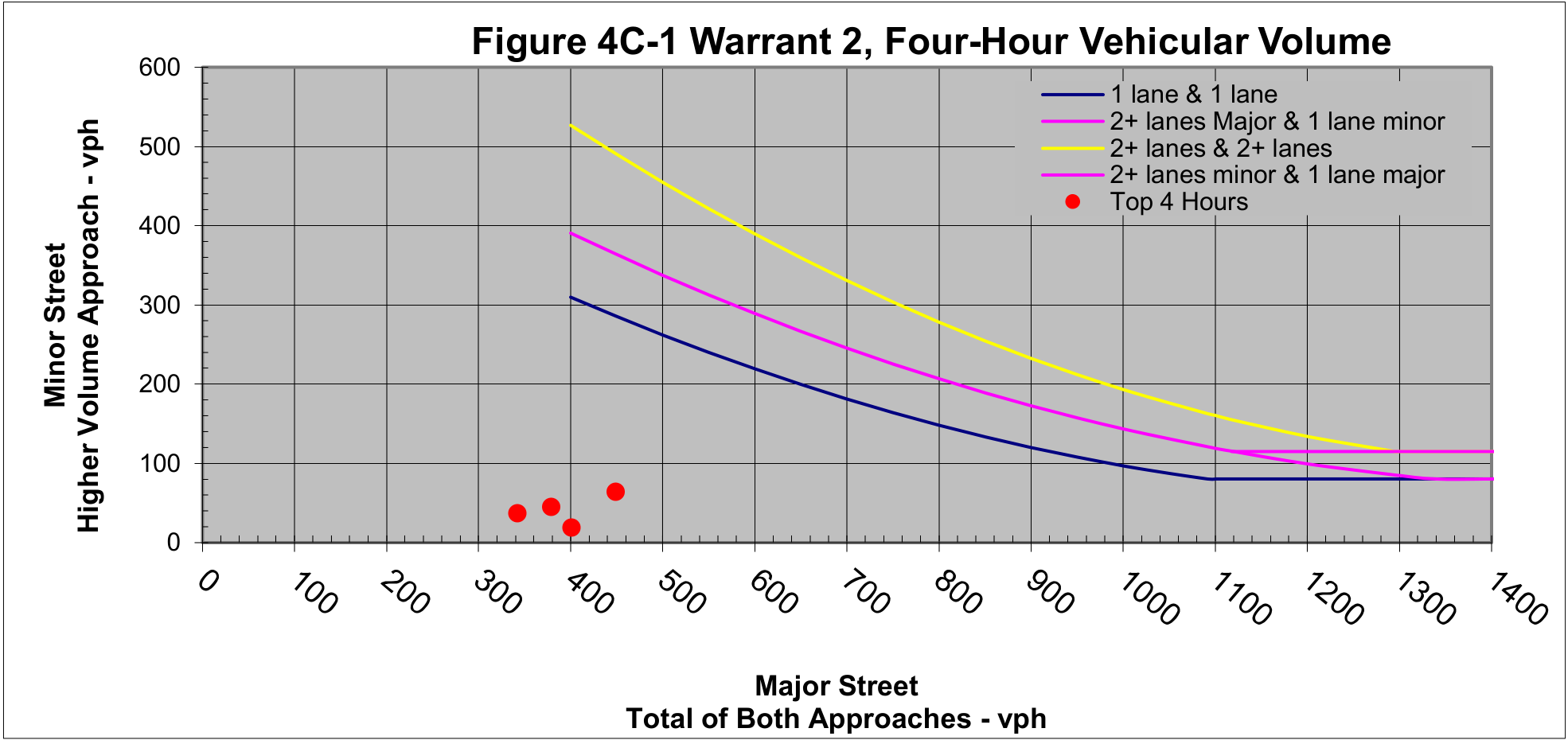

Figure 4C-1 Warrant 2, Four-Hour Vehicular Volume Chart
Top Hours for Figure 4C-1 Start Time End Time Major Street Minor Street
Top Hour 4:30 PM 5:30 PM 449 64
2nd Highest Hour 3:15 PM 4:15 PM 379 45
3rd Highest Hour 7:30 AM 8:30 AM 401 19
4th Highest Hour 12:00 PM 1:00 PM 342 37
Top Hours for Figure 4C-2 Start Time End Time Major Street Minor Street
Top Hour 4:30 PM 5:30 PM 449 64
2nd Highest Hour 3:15 PM 4:15 PM 379 45
3rd Highest Hour 7:30 AM 8:30 AM 401 19
4th Highest Hour 12:00 PM 1:00 PM 342 37

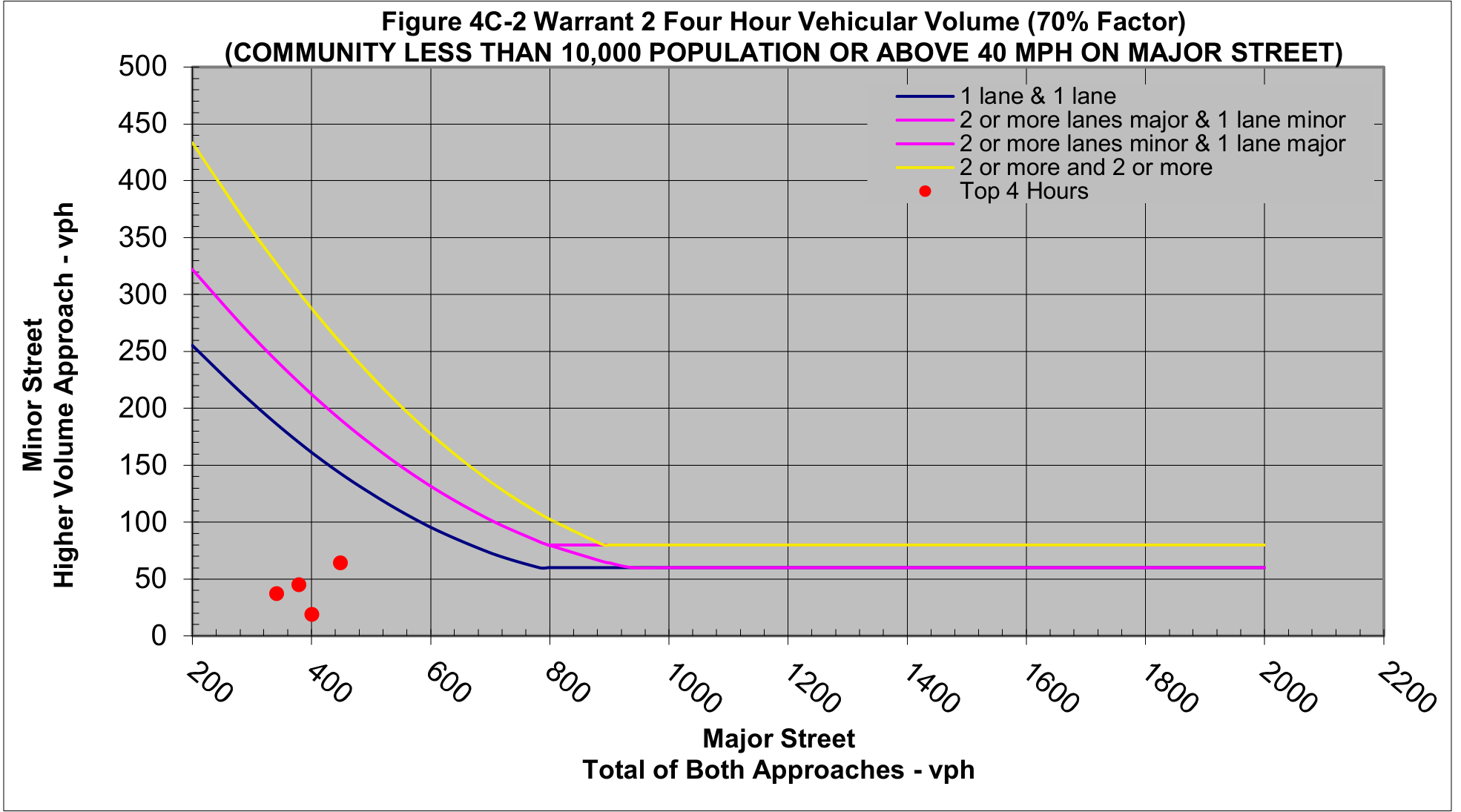

Figure 4C-2 Warrant 2 Four Hour Vehicular Volume (70% Factor) Chart
Are the requirements for Warrant 2 met?: No
Published Jan. 2022 Warrant 2 Page 2
