Signal Warrant Harmon and Dixon

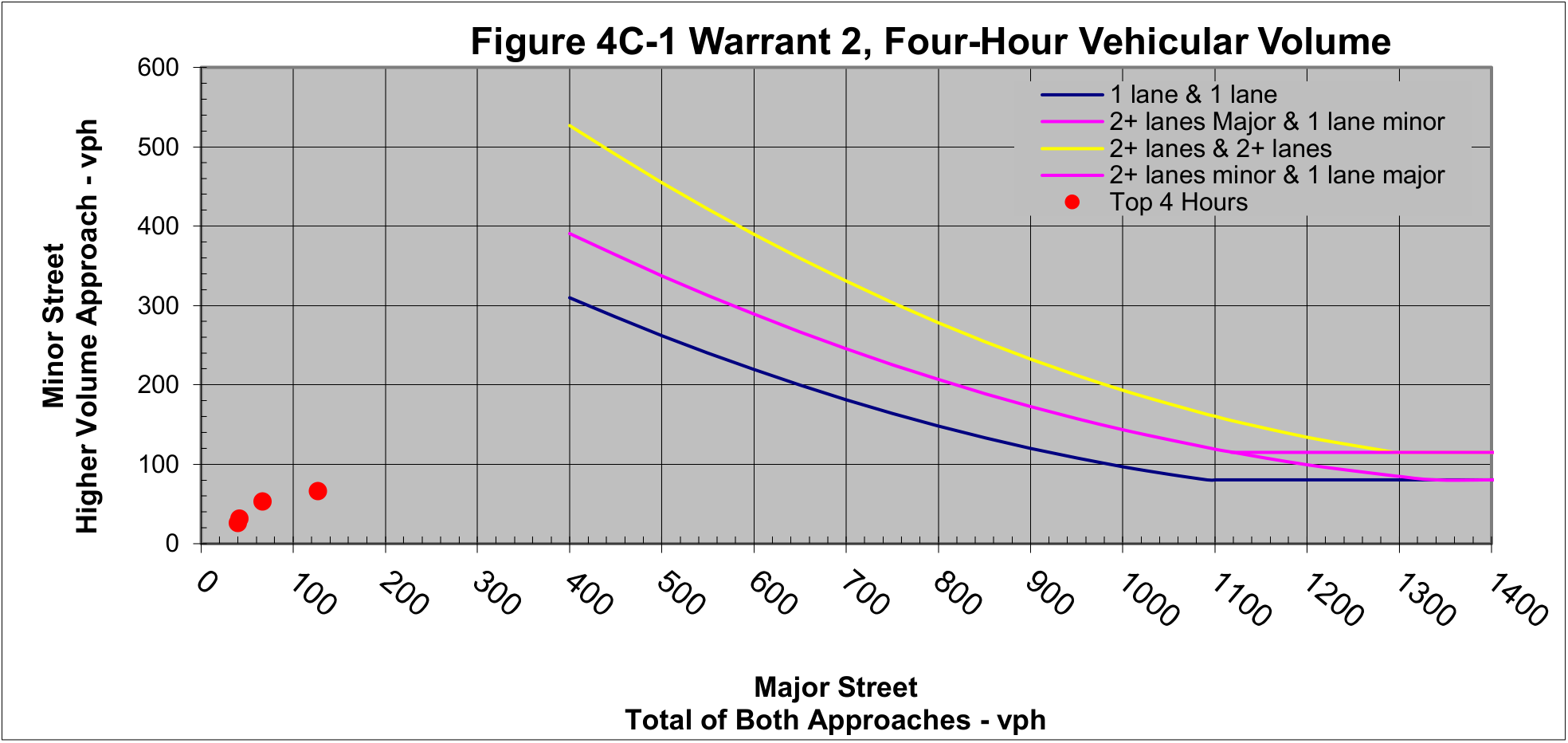

Figure 4C-1 Warrant 2, Four-Hour Vehicular Volume
Top Hours for Figure 4C-1 Start Time End Time Major Street Minor Street
Top Hour 8:00 AM 9:00 AM 127 66
2nd Highest Hour 2:30 PM 3:30 PM 67 53
3rd Highest Hour 4:45 PM 5:45 PM 42 31
4th Highest Hour 3:30 PM 4:30 PM 40 26
Top Hours for Figure 4C-2 Start Time End Time Major Street Minor Street
Top Hour 8:00 AM 9:00 AM 127 66
2nd Highest Hour 2:30 PM 3:30 PM 67 53
3rd Highest Hour 4:45 PM 5:45 PM 42 31
4th Highest Hour 3:30 PM 4:30 PM 40 26

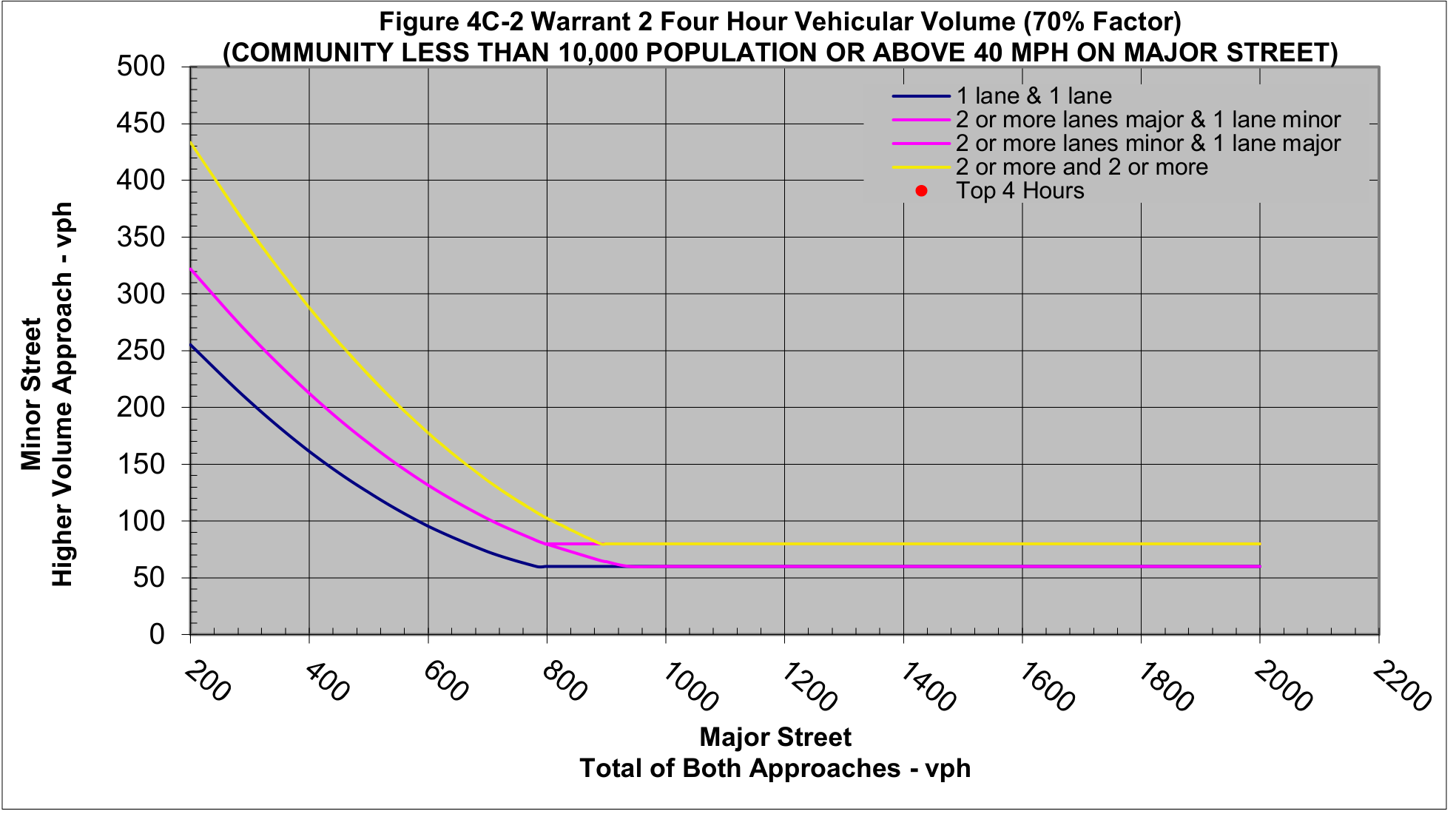

Figure 4C-2 Warrant 2 Four Hour Vehicular Volume (70% Factor)
Are the requirements for Warrant 2 met?: No
Published Jan. 2022
Warrant 2
Page 2
