Lanes, Volumes, Timings
30: Far Hills Ave & East Ave
01/06/2023
 |  |  |  |  |  |  |  |  |  |  |  | |
| Lane Group | EBL | EBT | EBR | WBL | WBT | WBR | NBL | NBT | NBR | SBL | SBT | SBR |
| Permitted Phases | 4 | 4 | 8 | 2 | 6 | |||||||
| Detector Phase | 4 | 4 | 4 | 8 | 8 | 2 | 2 | 6 | 6 | |||
| Switch Phase | ||||||||||||
| Minimum Initial (s) | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 20.0 | 20.0 | 20.0 | 20.0 | |||
| Minimum Split (s) | 22.5 | 22.5 | 22.5 | 33.0 | 33.0 | 26.0 | 26.0 | 26.0 | 26.0 | |||
| Total Split (s) | 47.0 | 47.0 | 47.0 | 47.0 | 47.0 | 103.0 | 103.0 | 103.0 | 103.0 | |||
| Total Split (%) | 31.3% | 31.3% | 31.3% | 31.3% | 31.3% | 68.7% | 68.7% | 68.7% | 68.7% | |||
| Maximum Green (s) | 41.0 | 41.0 | 41.0 | 41.0 | 41.0 | 97.0 | 97.0 | 97.0 | 97.0 | |||
| Yellow Time (s) | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | |||
| All-Red Time (s) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | |||
| Lost Time Adjust (s) | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | |||||
| Total Lost Time (s) | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | |||||
| Lead/Lag | ||||||||||||
| Lead-Lag Optimize? | ||||||||||||
| Vehicle Extension (s) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | |||
| Recall Mode | None | None | None | None | None | C-Max | C-Max | C-Max | C-Max | |||
| Walk Time (s) | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | ||||||
| Flash Dont Walk (s) | 20.0 | 20.0 | 10.0 | 10.0 | 10.0 | 10.0 | ||||||
| Pedestrian Calls (#/hr) | 4 | 4 | 8 | 8 | 3 | 3 | ||||||
| Act Effct Green (s) | 17.6 | 17.6 | 17.6 | 120.4 | 120.4 | 120.4 | 120.4 | |||||
| Actuated g/C Ratio | 0.12 | 0.12 | 0.12 | 0.80 | 0.80 | 0.80 | 0.80 | |||||
| v/c Ratio | 0.02 | 0.04 | 0.67 | 0.01 | 0.37 | 0.08 | 0.19 | |||||
| Control Delay | 54.0 | 55.0 | 82.7 | 4.3 | 5.1 | 0.9 | 1.0 | |||||
| Queue Delay | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | |||||
| Total Delay | 54.0 | 55.0 | 82.7 | 4.3 | 5.1 | 0.9 | 1.0 | |||||
| LOS | D | D | F | A | A | A | A | |||||
| Approach Delay | 54.7 | 82.7 | 5.1 | 1.0 | ||||||||
| Approach LOS | D | F | A | A |
Intersection Summary
| Area Type: Other | |
| Cycle Length: 150 | |
| Actuated Cycle Length: 150 | |
| Offset: 148 (99%), Referenced to phase 2:NBTL and 6:SBTL, Start of Yellow | |
| Natural Cycle: 60 | |
| Control Type: Actuated-Coordinated | |
| Maximum v/c Ratio: 0.67 | |
| Intersection Signal Delay: 8.8 | Intersection LOS: A |
| Intersection Capacity Utilization 48.3% | ICU Level of Service A |
| Analysis Period (min) 15 |

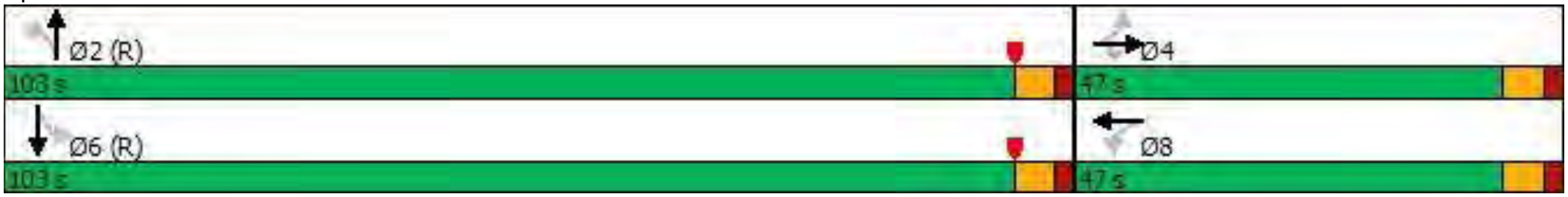

Splits and Phases: 30: Far Hills Ave & East Ave
